SUMED

- Supply 2 * 15 M/W Hot Oil Heaters (HOH) for SUMED Tank Farm located in Ain-Sokhna

• HOH casing with helical coils
• HOH outlet stack
• Burner or Combustion chamber to burn every kind of Liquid or Gas Stream
• Combustion air intake system, including shut-off damper, ducting and forced draft fan
• Emergency Shutdown (ESD) & Process control system (PCS) Cabinets and protections

Cairo Oil Refining Company

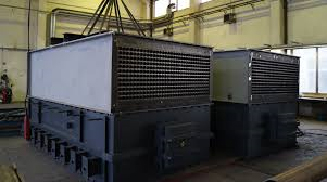

Supply of Two New AIR PREHEATERS FOR FIRED HEATERS 1F-1 & 4H-1 Complete with INDUCED DRAFT FANS

• AIR AND FLUE GAS DUCTING: Each Air Preheating System shall include as minimum:
 Cold air duct with new gate from existing forced draft fans duct to new APH
 Hot air duct with new gate from new APH to existing burners duct
 New air by-pass duct from cold air to hot air with its new damper and new actuator
 Bypass control philosophy is shown in attached PID 4435-03-PID-00001 P&ID Rev00

• INDUCED DRAFT FANS:
 Two Induced Draft Fans (2x100%) with electric motor with shall be provided to impulse the flue gas from the Air Preheater outlet flange to the flue gas stack for Topping Heater
 One fan shall be in operation and the other one, in standby
