Water Treatment

Schneider - Mostabal Misr 6 Pump Stations

Project Overview:
TRICOM Controls successfully designed and assembled 30 control panels for a project involving six pump stations. Each station comprised five control panels: one main panel utilizing a Schneider Modicon M580 Hot Standby System, and four remote IO panels based on the X80 IO System.
Key Achievements:
• Demonstrated expertise in integrating a diverse range of Schneider products, including:
o Spacial Control Panels
o Modicon M580
o X80 IO System
o Managed Switch
o ABE7 Telefast System
o Harmony GTU
o EGX150
• Overcame project challenges through the dedication and commitment of the TRICOM workforce.
Project Scope:
• Design and assembly of 30 control panels.
• Implementation of Schneider Modicon M580 HSBY System.
• Creation of six pump stations, each with five control panels.

Metito (Sidi Abdallah STP Project)

Main Contractor: Metito (Overseas)
Consultant: Cosider groupe
Project: Sidi Abdallah STP 32,000 m3/day Project, PLC and SCADA System
Location: Algeria

Sidi Abdallah Sewage treatment Plant aims to preserve the natural environment and protect public health against any pollution and the possibility of using this purified water to fill an artificial tourist lake in the town of Sidi Abdallah, and the use of this purified water also in agriculture.

The Proposed System is a Control System Based on SIEMENS SIMATIC ET 200SP.
The SCADA System includes Redundant operator workstations (One of them Operator/Engineering workstation) with 24” LED Screen, Large Display 65” and one Printer.
The communication between PLC Systems (Inlet Area, Filtration & Sludge Treatment, and FCDs Area) and the SCADA System  is via Ring communication network “Multi-mode Fiber Optic Cables”.
The PLC System is able to communication with Electrical Equipment via Modbus Serial RS 485.
The PLC System is communicating with The HMI via communication network “Ethernet Cables”.

Abu Qir Fertilizer Company (AFC) /BAMAG

- ZLD (ZERO LIQUID DISCHARGE), industrial waste water treatment of 600 M3/H

• Design, Supply, Install, Commissioning and Startup of the main system “public area” and NH3 removal subsystem
 2 systems SIEMENS PLC-S7-400H
 Chemical injection process design
 6 trains for NH3 design operation sequence
 Filed Devices termination.
 3000 I/Os, Wincc SCADA system communicating with 6 PLC systems, 8000 tags, Redundant Server, 3 clients.
 HMI, Archiving, Alarming, Trending, Reports

INTECH

  • Intech Assuit Potable Water Treatment Plant - System Panels Engineering and Assembly
  • Engineering of RA System Including (GA, Power Calc., Heat Dissipation, System Wiring)

Assembly Based on Approved Documentation for:

ü  Main PLC Control Panel Based on Logix5572 Controller - Controllogix I/O

ü  Treated Water Pumps Control Panel Based on FLEX I/O

ü  Alum Control Panel Based on FLEX I/O

ü  Chlorine Control Panel Based on FLEX I/O

ü  Qty: 6 Filter Control Desk Based on Compact Logix 5370 L2 Controller

  • Total IO of 528, With High Quality Marshaling Component All of West Europe Origin,

Assembled in Rittal Panels and Control Desks

Giza Water Company

  • Japanese Friendship Station - محطة الصداقة اليابانية

Design, Engineering, Assembly, FAT, Installation, Commissioning & Start-up of main MDB 800A (2 out of 4) Schneider Electric, The Scope Included,

Dismantling of The Old Existing Switchgear.

Installation of The New Switchgear Using Backup Temporary Generator for Partial Installation to Prevent Power Supply Failure on Critical Loads.

Cairo West Power Plant

- Demi Water Unit

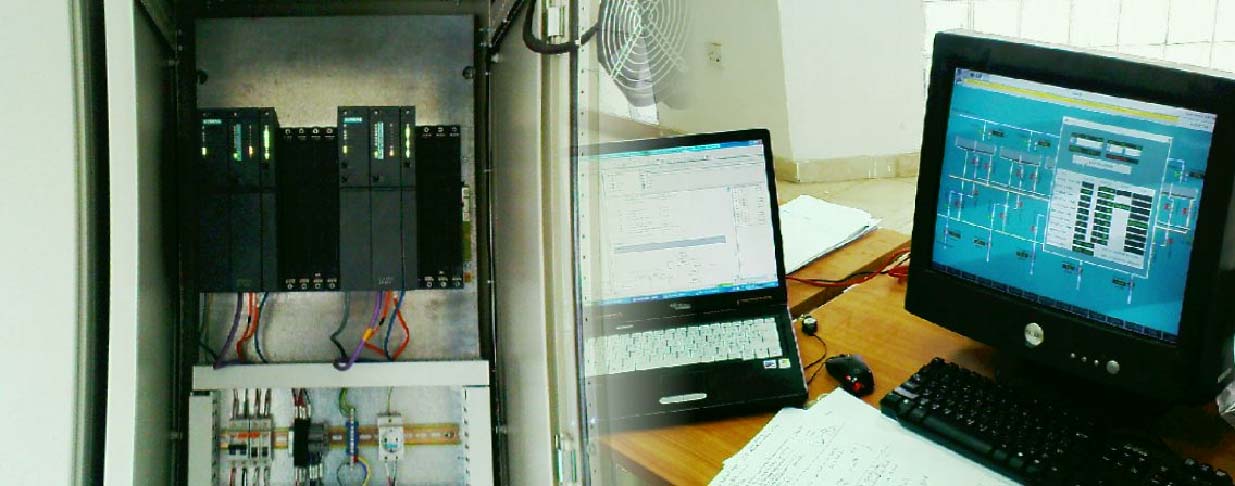

• Migration from S5 systems to S7-400H & SCADA
• 3 Demi water lines + 3 Raw water lines
• Shutdown Time 30 Hours including cabinet assembly
• Commissioning & Startup Time; 6 Hours

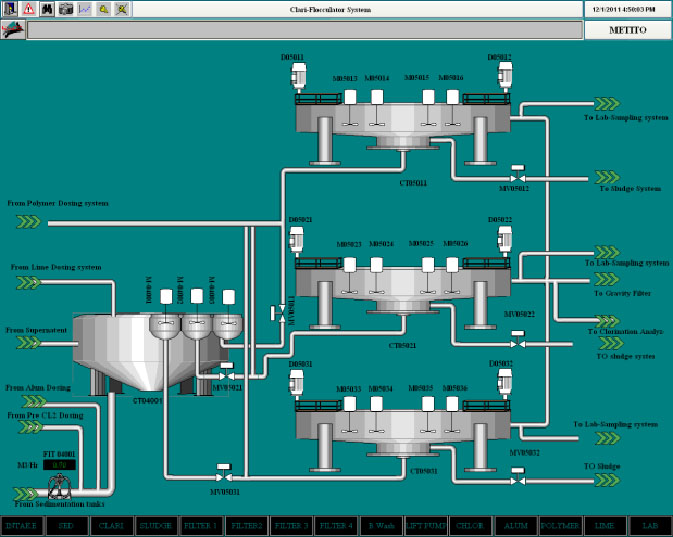

Metito Sudan

- SOBA Potable Water Treatment 100,000 m3/day

• Design, Supply, Install, Commissioning and Startup of SOBA water plant control system
 SIEMENS PLC S7-400H, Redundant CPU
 I/O No. 3500 signal
 WinCC SCADA system 8000 tags
 Redundant communication and Profibus Network,
 No. 10 Remote panels
 HMI, Archiving, Alarming, Trending and Reports

Metito - Manshet El Horya

  • Water Treatment Plant in Al- BEHERA

Engineering, Supply,  Commissioning and Start-up of Manshet El Horya  STP 30,000.00 m3/day

( Intake Area, Bio Treated Area, Sludge Treatment Area, Chlorination Area)

SIEMENS S7-1500

SCADA System ( One Operator Station, LCD 60" and 3 HMI 12")

Ring Network Via Fiber Optics

Metito - El Swaleh

  • EL SAWALEH Waste Water Treatment

  Sewage Treatment Plant, Plant (22,000-44,000 m3/D).

  Design, Supply, FAT, Commission & Start Up for Automation System (1400 IO) & SCADA System.

  Automation System Based on Siemens Latest S7-1500 System With 2 Central Areas.

  Ethernet Communication over Fiber Optics for Automation System   SCADA System.

  SCADA System Based on PC Based & HMI, Qty 2 Redundant Servers,Qty 2 Clients.

  Local HMI TP 1500 for Each Central Area.

Metito - NCIC

  • NCIC Demin & Polisher Project PLC and SCADA System

  Design, Supply, FAT, Commission & Start Up for Automation System (800 IO) & SCADA System.

  PLC System Siemens S7-412 H, Redundant IO, Qty 4 Remote Et-200M.

  SCADA System, 2 Operator Station, Multi Panel MP370.

  Ethernet Communication over Fiber Optics for Automation System & SCADA System

  Modbus Communication to DCS

VEOLIA – Jazirat Al - Dahab

  • Jazirat AL-Dahab Water Treatment Plant at GIZA

Engineering, Supply,  Commissioning ,and Start-up of Jazirat  Al-Dahab Water Treatment  By Using Dina Sand System Technology 160,000.00 m3/day No 6 Standalone Central Stations,(Inlet Area, Treated Area,  Cholorination Area, Filtiration Area)

SIEMENS S7-1500

SCADA System ( Two Operator Station ,LCD 60" and 4 HMI 12")

Communication Ring Network Via Fiber Optic

VEOLIA - Al Rahmanya

  • Integration between Automation System (PLC System S7-1200), HMI, Classic Control & MIMIC for each Filter Disk to Ensure Continues Operation In Case of PLC Failure Using Convention Control Circuits Through PB, Selectors...Etc.

  Plant Capacity 400L/S, Plant Consist of Qty 8 Central Areas & Qty 6 Filter   Control Disk.

  Design, Supply, FAT, Commission & Start Up for Automation (1500 IO) & SCADA System.

  Automation System Based on Latest Siemens S7-1500 for Each Central Area.

  Siemens S7-1200 & Classic Control for Filter Control Disk.

  Monitoring System Varies between Convention MIMIC for Filter Disks & SCADA System on Plant Main Server Based on Siemens Wincc V7.5 & Qty 13 HMI TP Comport for Central Panels & Filter Disks.

VEOLIA - SHATTA

  • Shatta Water Treatment Plant in Damietta – Central Control Panel

  - Engineering, Supply,  Commissioning , and Start-up of SHATTA STP 25,000.00 m3/day

No of Area 4 ( Aeration and Sludge System, Chlorination System, CCP-01 and CCP-02)

SIEMENS S7-1500

SCADA System ( One Operator Station and 4 HMI 12")

Communication Ring Topology Via Fiber Optics

VEOLIA - ASSUIT

- Demi Water Plant - Assuit Simple Cycle Power Plant 500 MW

• Design, Supply, Install, Commissioning and Startup for Control & SCADA systems
• SIEMENS PLC-400H,
• Redundant Power Supply & Communications
• No. of I/Os: 2000 I/Os
• WinCC SCADA no. 4000 Tags, GPRS System with world Clock
• HMI, Archiving, Alarming, Trending, Reports and Printing
• No. 1 Engineering Station / Single Monitor 22", No. 1 Operator Station with Dual Monitor 22
• Supply of SWAN Silica & Sodium analyzers

VEOLIA - Farshoot

- Farshoot Water Treatment in Ausit 400 L/Sec

• Design, Supply, Install, Commissioning and Startup
• Siemens S7 1500, HMI & SCADA
• No. 6 standalone central stations
• Ring network via fiber optics up to 4 KM
• Communication with third party via profinet
