Thyssenkrupp

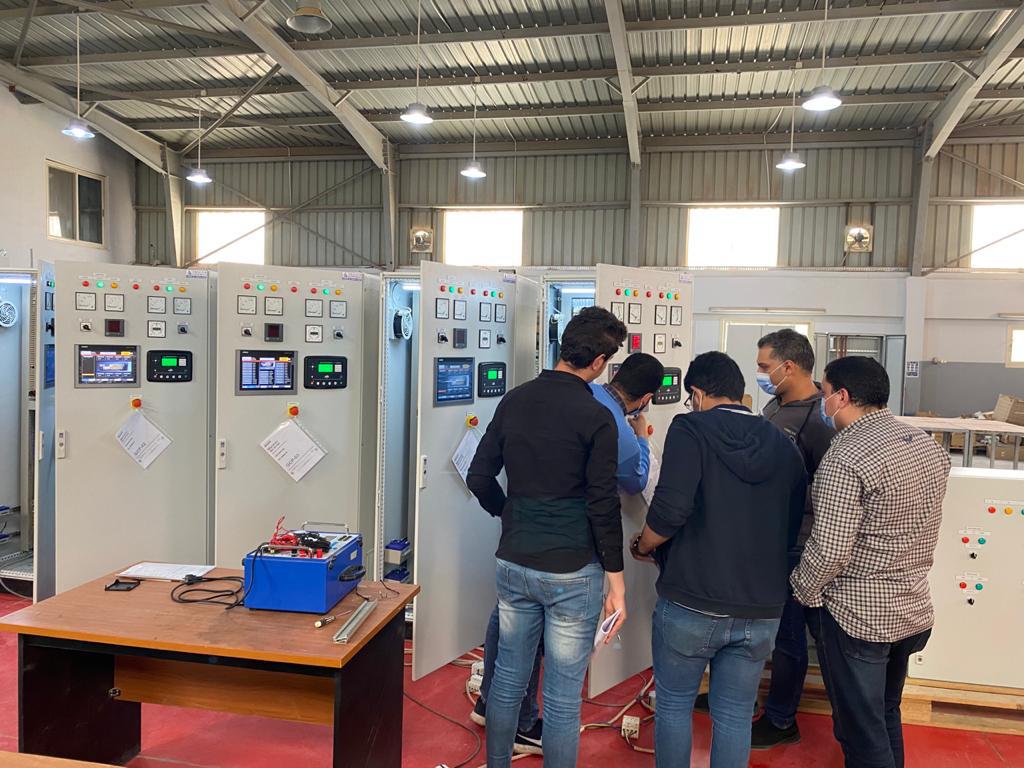

The Project was a Combination of Generator Control Panel – GCP, Protection And Synchronization Using Siemens PLC System for Monitoring and Communication In Addition to DSE 8620 From Deep Sea Electronics Ltd. For Automatic Synchronization

Tricom Controls scope of work

Design, manufacture, installation, SAT, commissioning and startup of

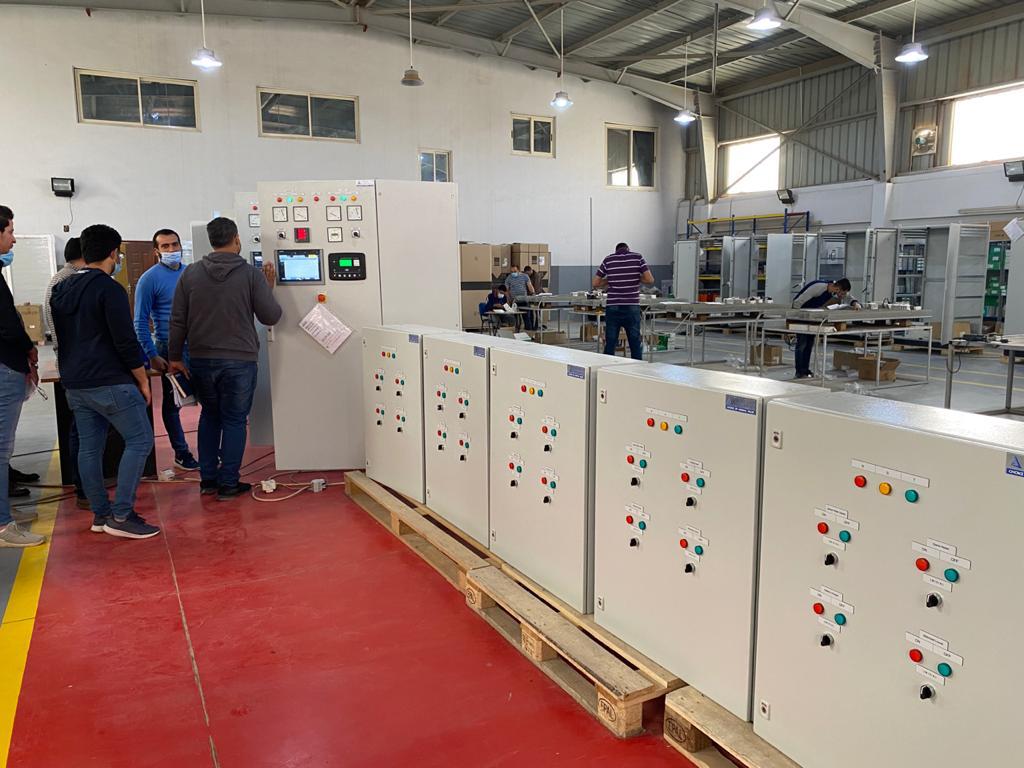

Qty. 5 Generator Control Panel (GCP)

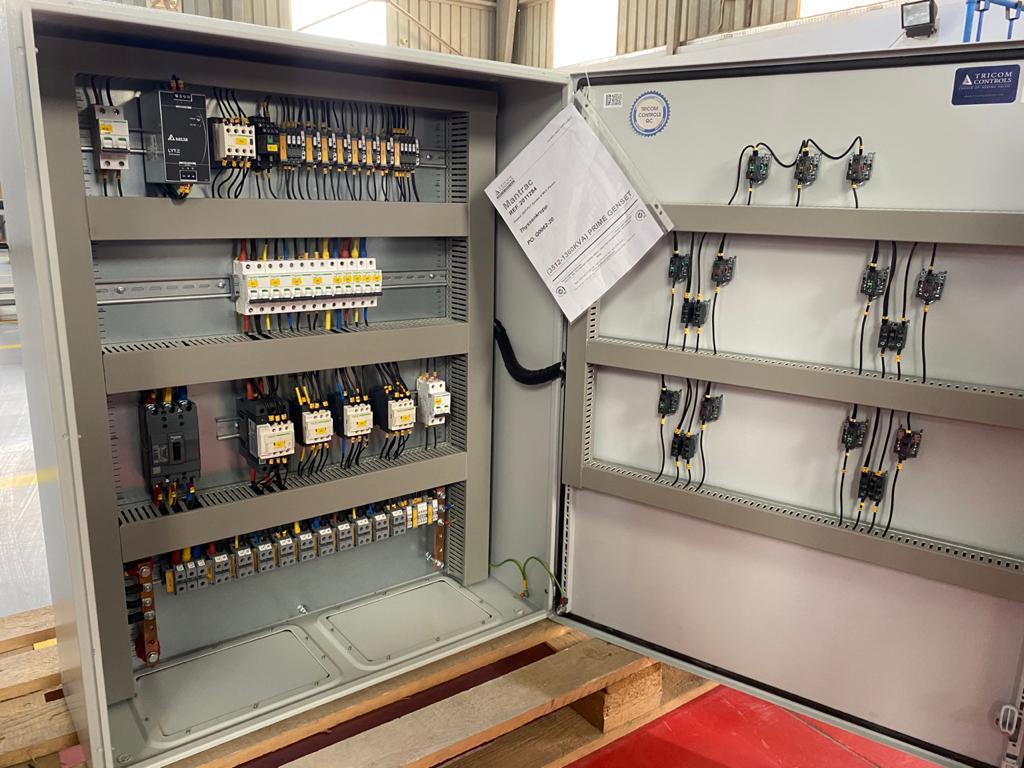

Qty. 5 auxiliary panels for generator auxiliaries, Each GCP has the following:

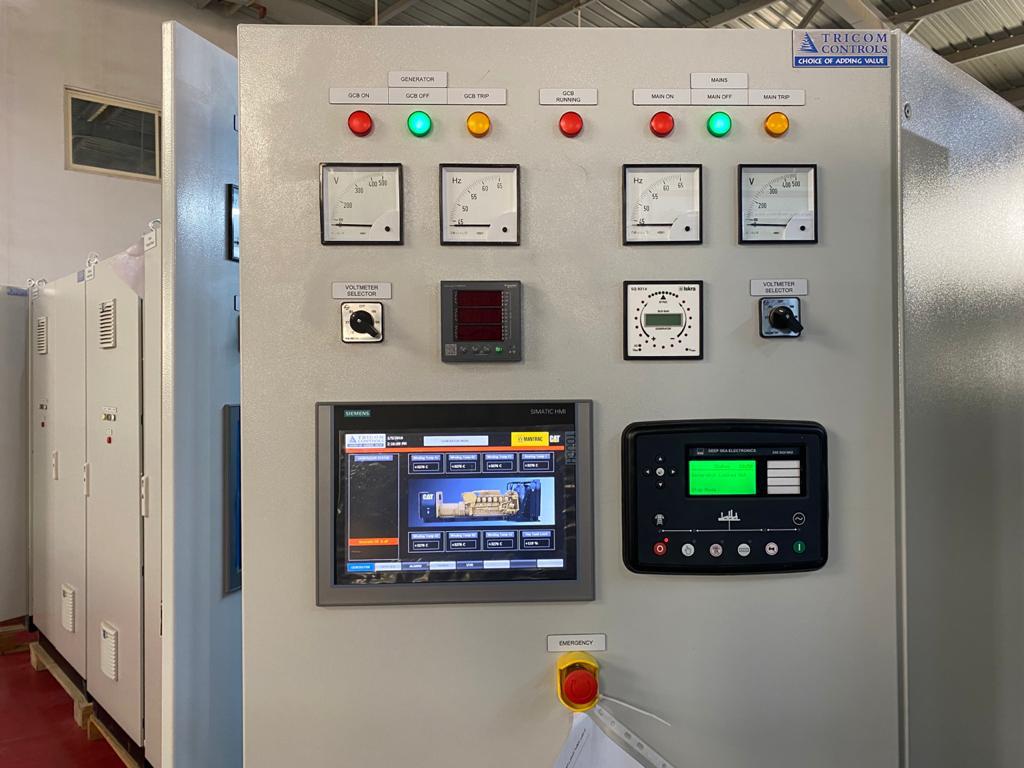

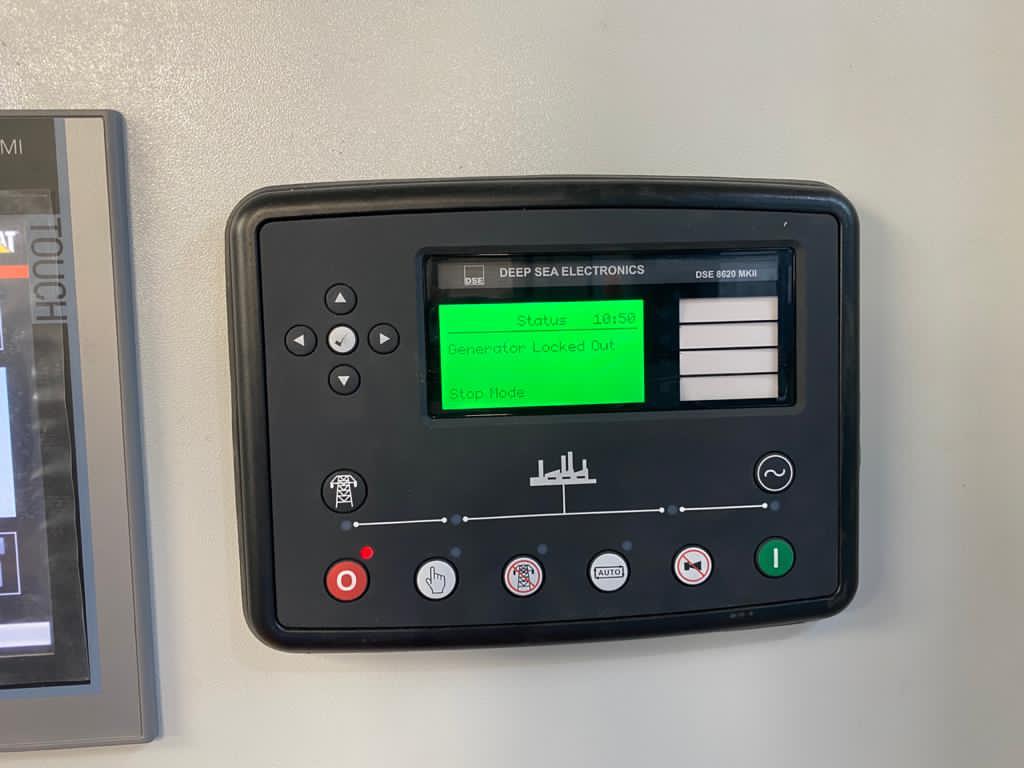

- Analog voltmeters, Analog frequency meters, Digital Multimeter, Deep See DSE 8620 for automatic synchronization, Synchro-scope for manual synchronization.

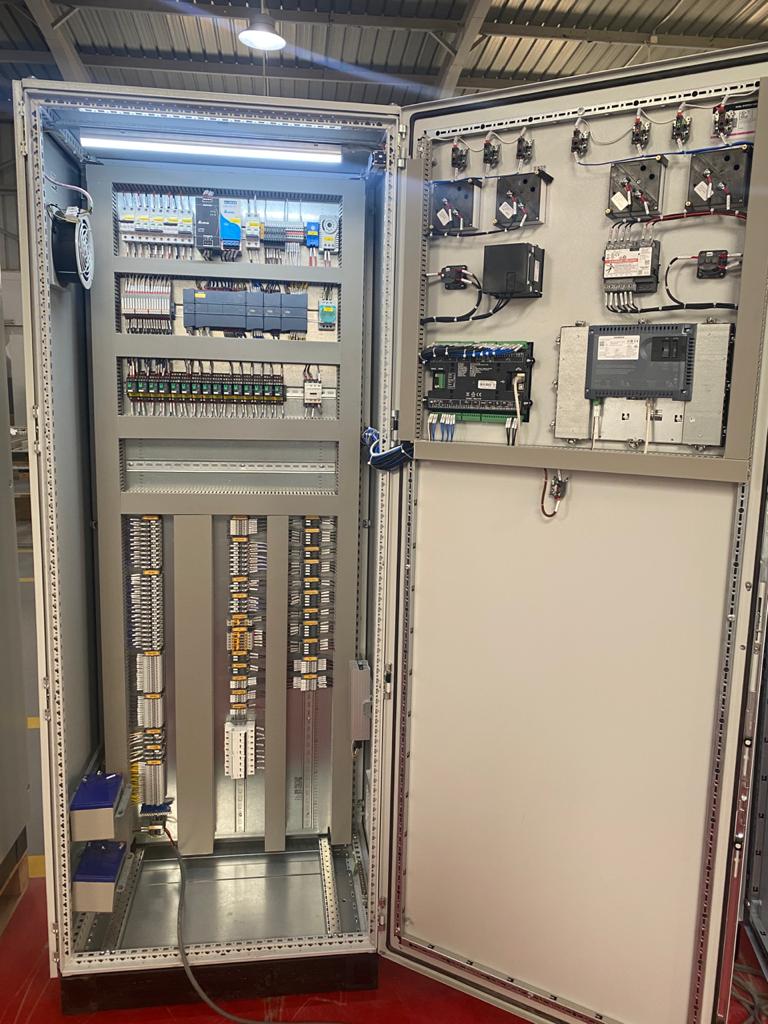

- SIEMENS SIMATIC S7-1200 PLC & HMI to communicate with DSE & generator to monitor all mechanical & electrical readings.

Petroleum Marine Service

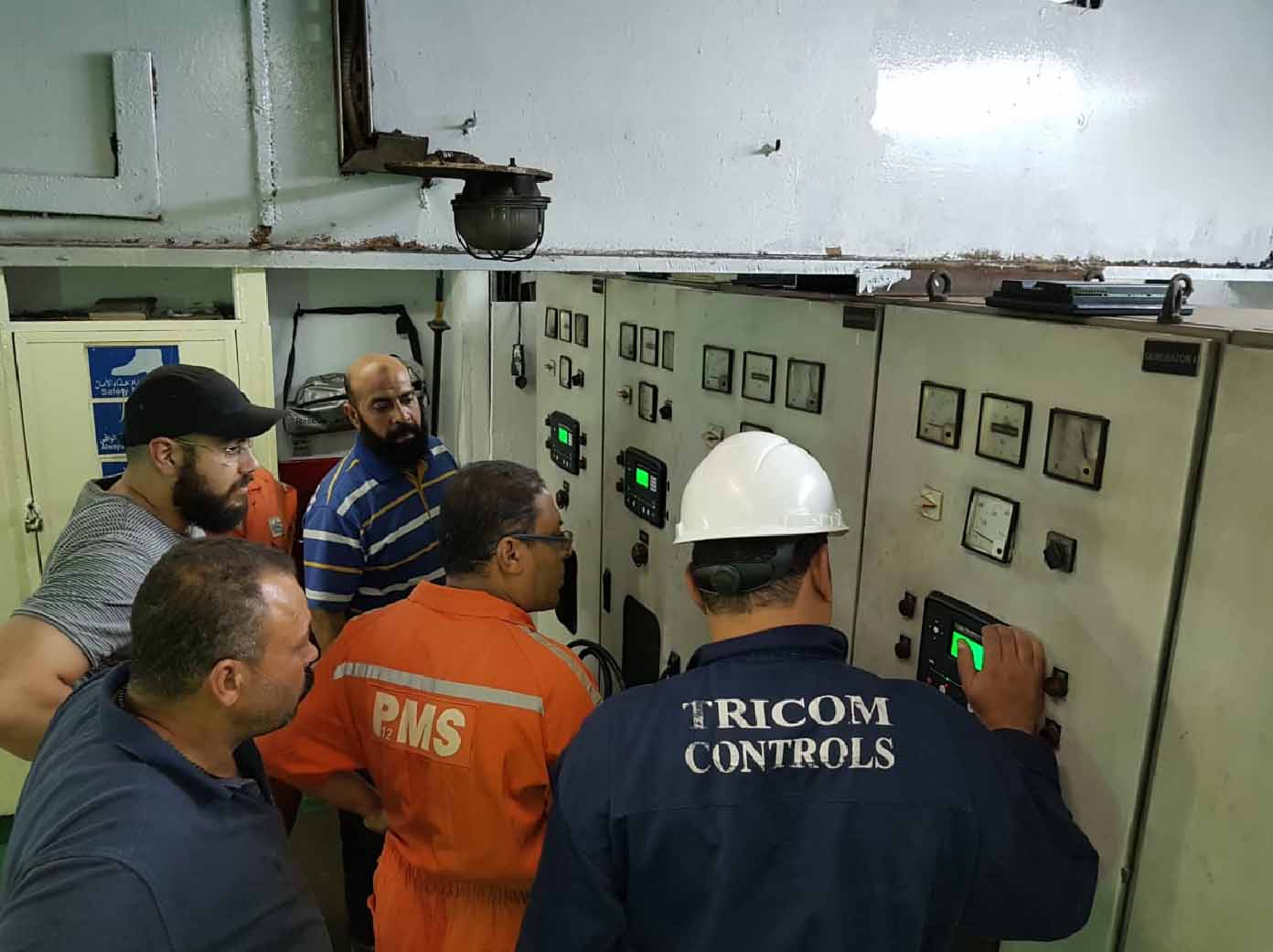

- Upgrade the Control / Synchronization system for Qty. 6 Diesel Generators of PMS-11 Barge

• Supply & Install QTY:6 Deep sea module DSE8610
• Synchronization, Load Sharing/Shading and Manoeuvring between the 6 diesel Generators
• Up & Run the PMS-11 Barge in 24h

PreviousNext

Badr Petroleum Company

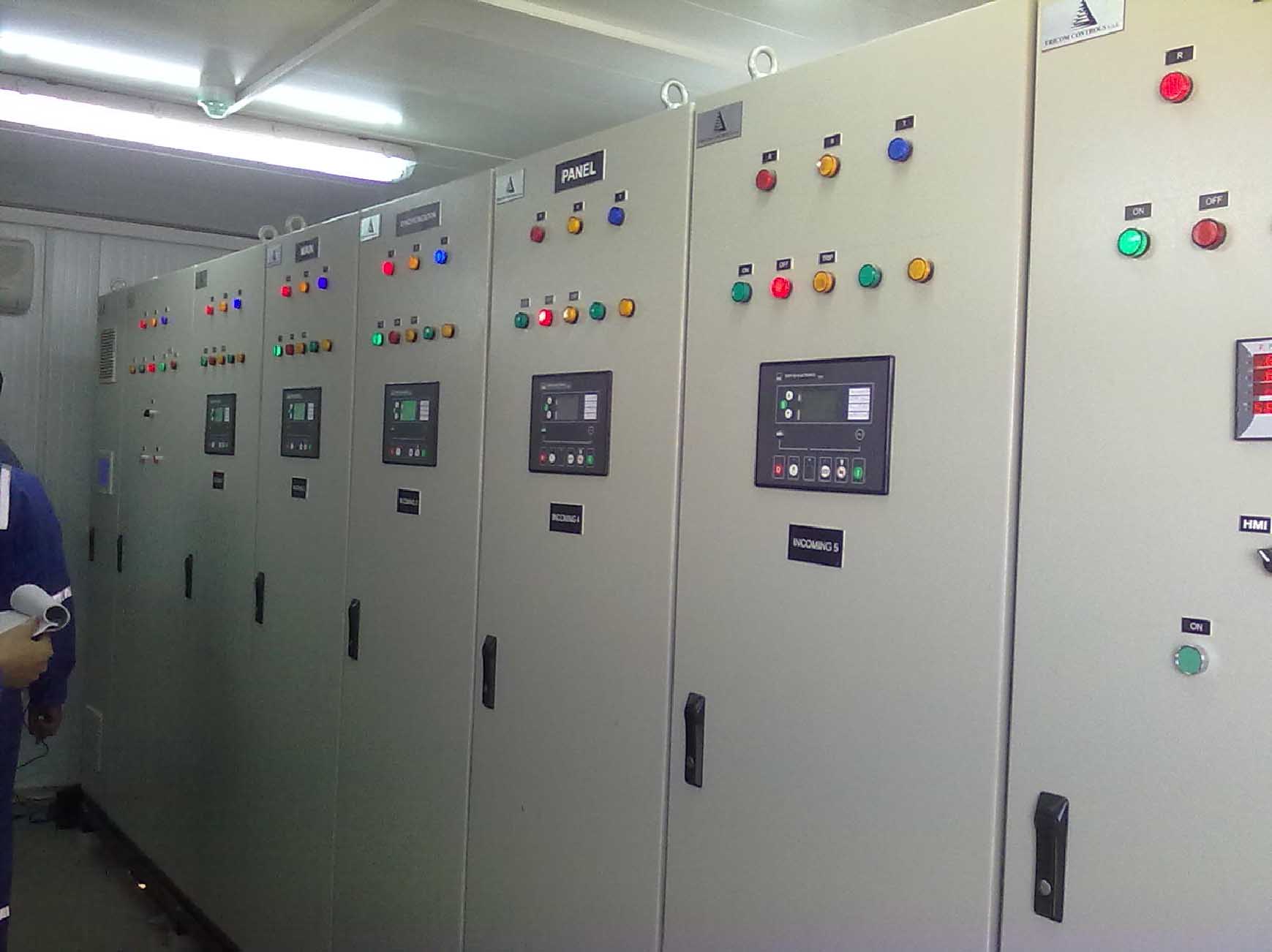

- Design, Integration, Supply & Commissioning of LV Synchronization / Control Panels for Qty. 5 Diesel Generators

• LVSG IP42, QTY 5 ACB 2500A
• QTY 5 Deep Sea module 5510
• Siemens PLC S7-200
• Load Sharing/Shading

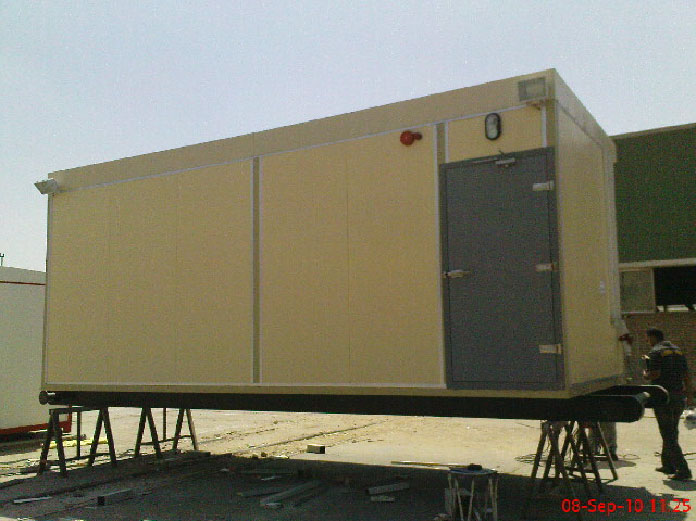

• Shelter IP 54 with fire alarm system

PreviousNext

Methanex

- Upgrade BASLER AVR/Excitation system for GE 20MVA/6.6KV Diesel Generator

• Supply and install Basler DECS-250 to replace DECS-200
• Wiring modification in the existing generator control panel.
• Programming, commissioning and startup
• Documentations and as built drawing

PreviousNext

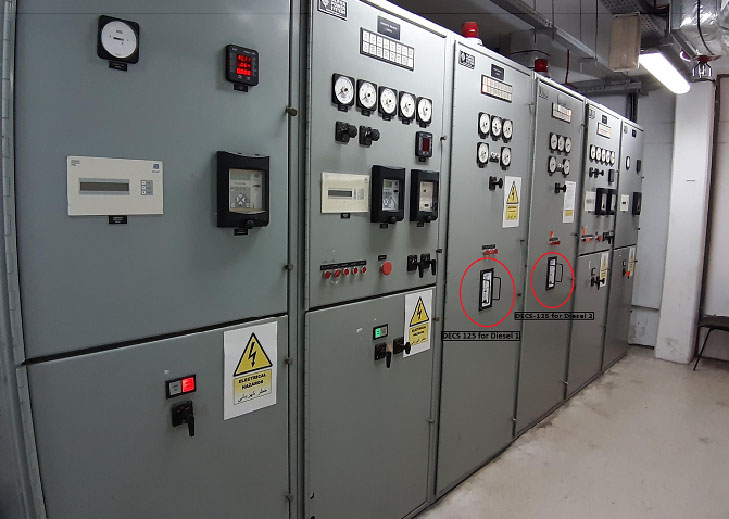

Siemens Power Generation

-Upgrade BASLER AVR/Excitation system for Qty.2 CAT D3616 Diesel Generator (6.5MVA/11KV) for Midor Electricity Plant

• Supply and install Basler DECS-250 to replace DECS-125
• Configure the new AVR with the original setting
• Programming, commissioning and startup
• Documentations and as built drawing
