LV Panels

KPC Panel

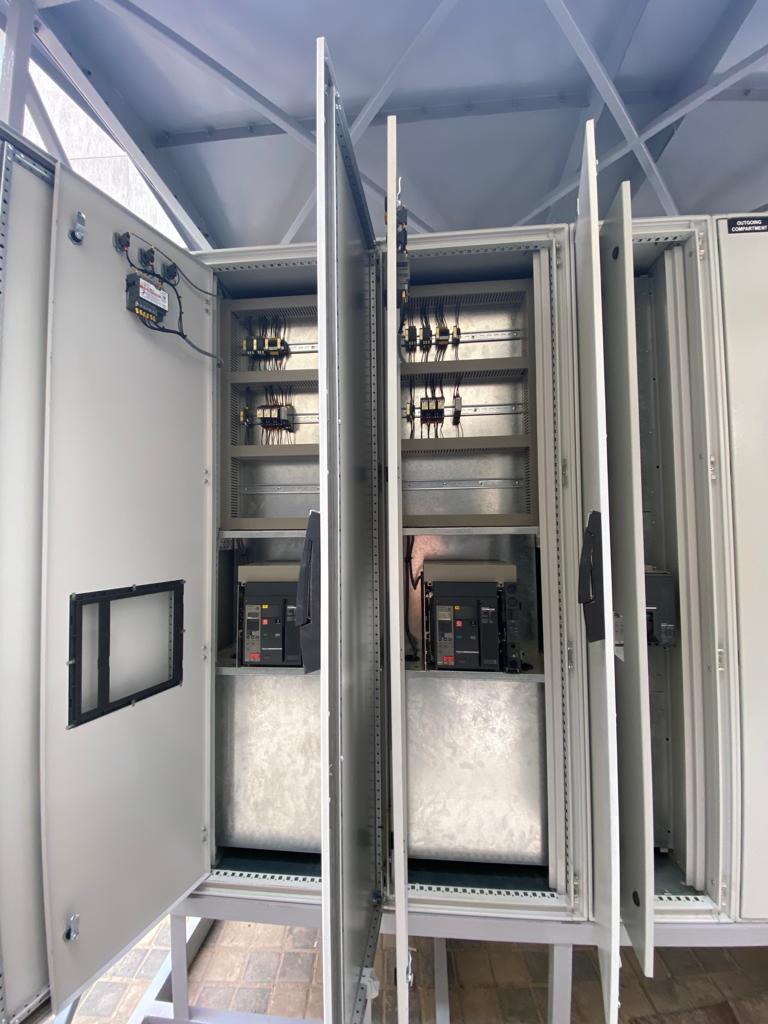

Main Distribution Board, Schneider Electric Spacial SF type, 1250A, IP55, Double door Floor Standing,
suitable for use in average ambient temperature 40®C.
Short circuit current withstand 36KA, Form of internal separation 3B.

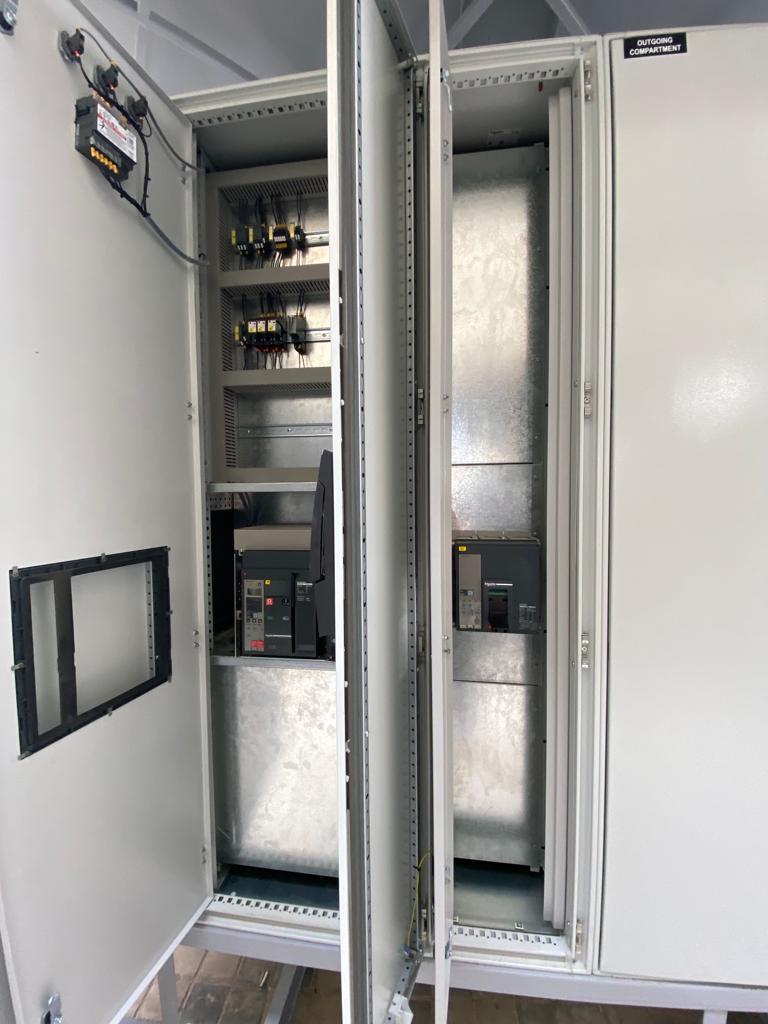

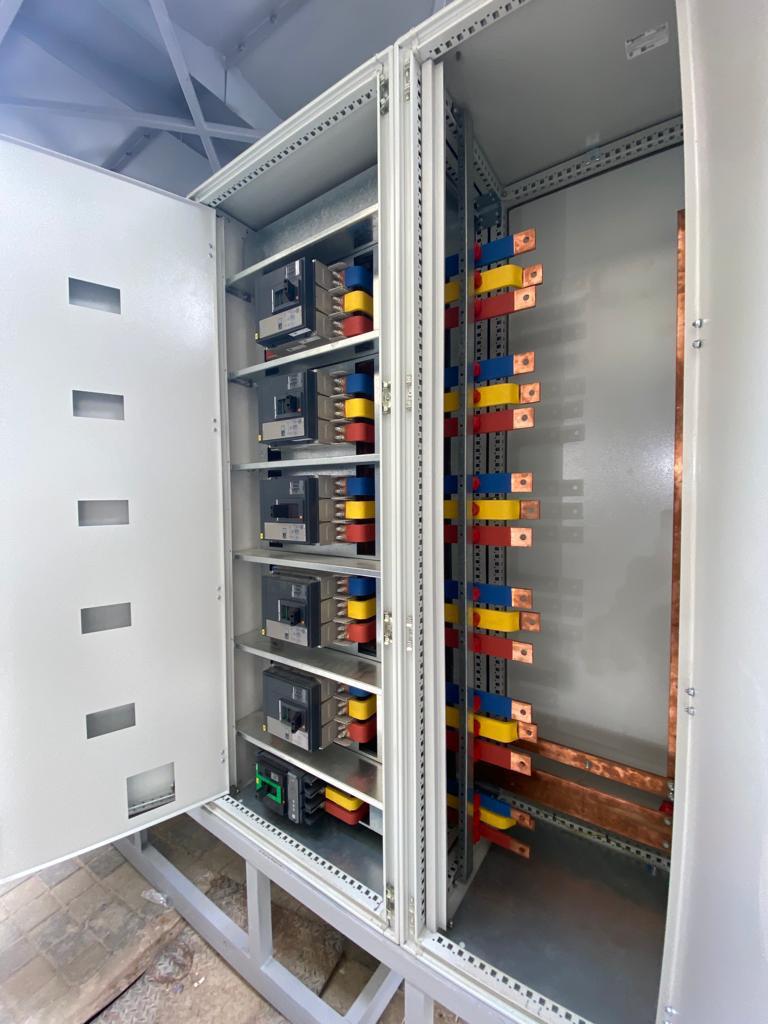

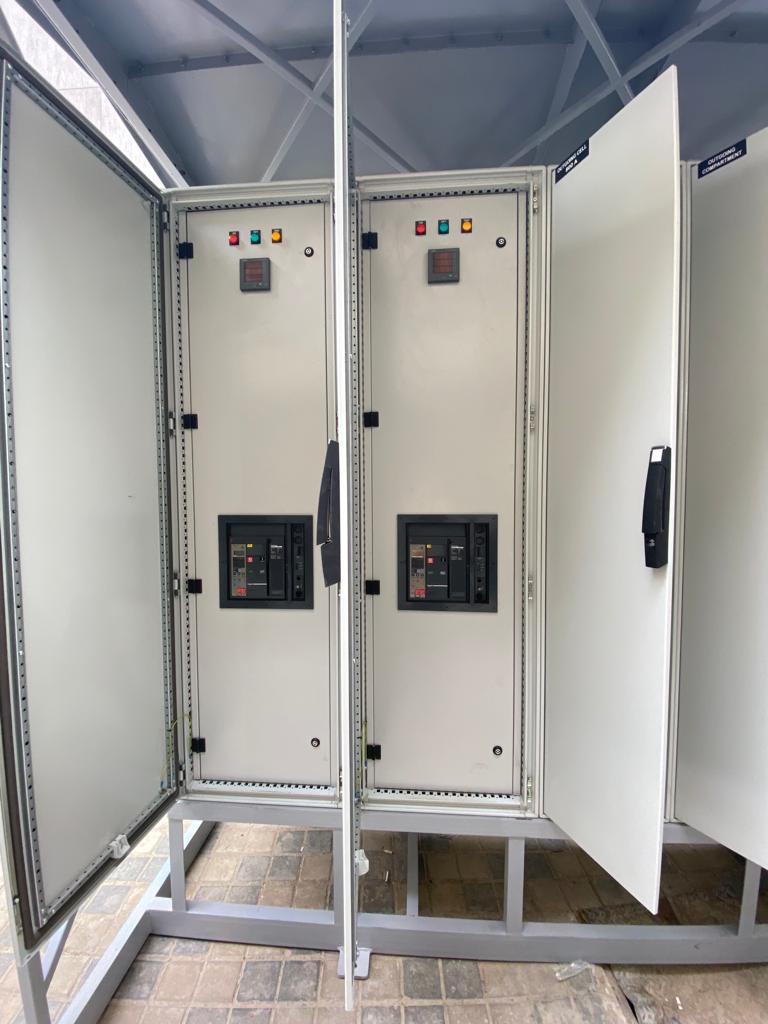

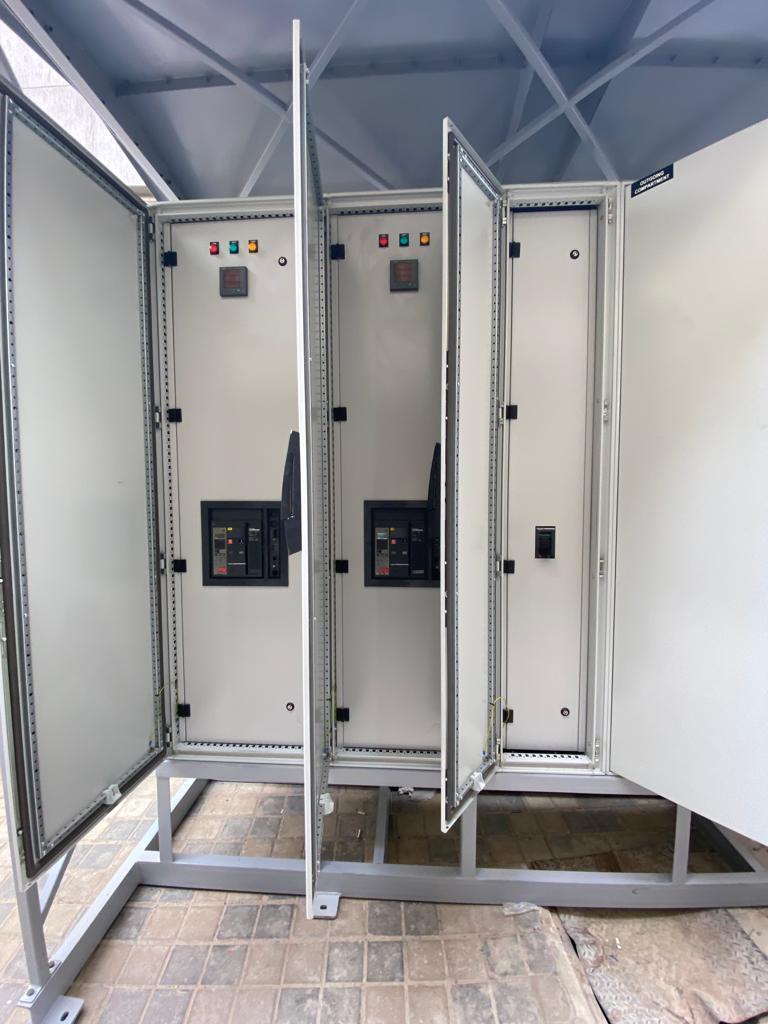

Two incoming feeder 1250A, Schneider Electric Masterpact NW12, Micrologic 6.E, Outgoing 6EA Compact NS630 Micrologic 5.0

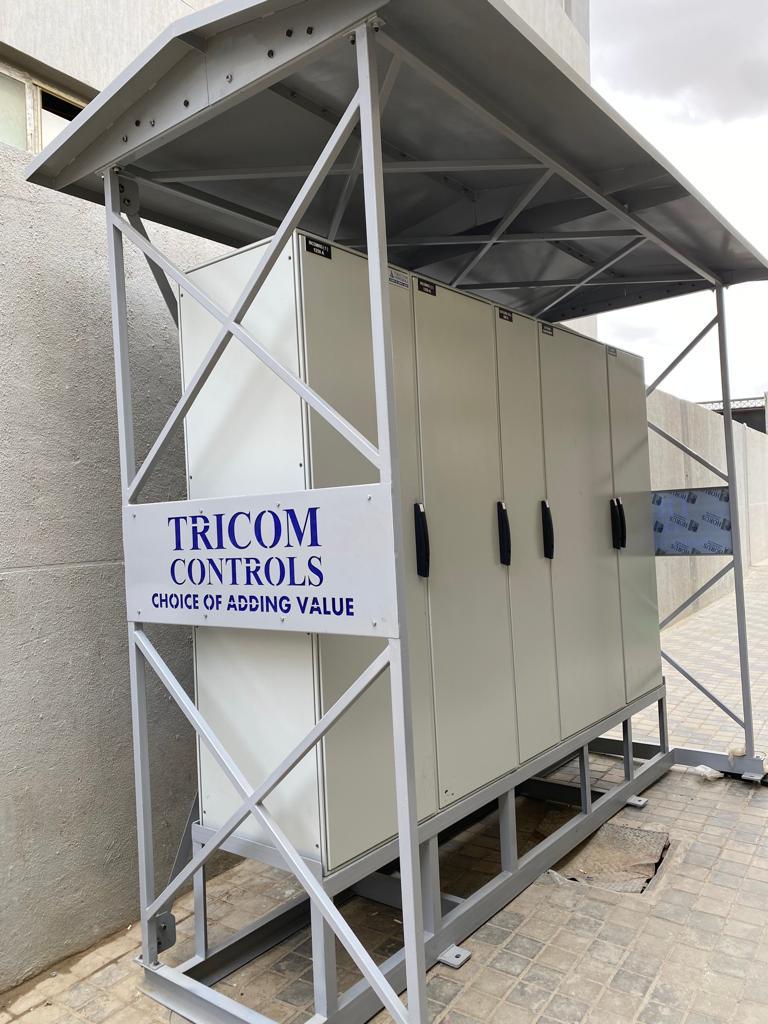

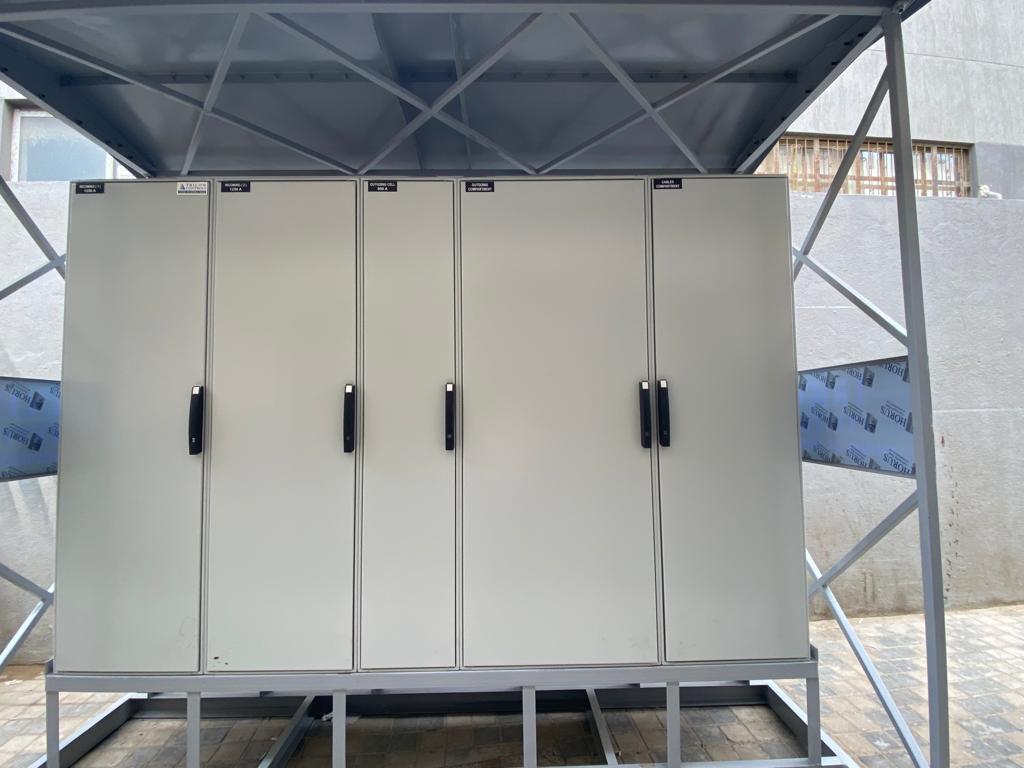

Distribution board is complete with steel frame and base frame 50cm above ground with steel sunshade.


BAPETCO - BED-3 - Main Distribution LV Panels

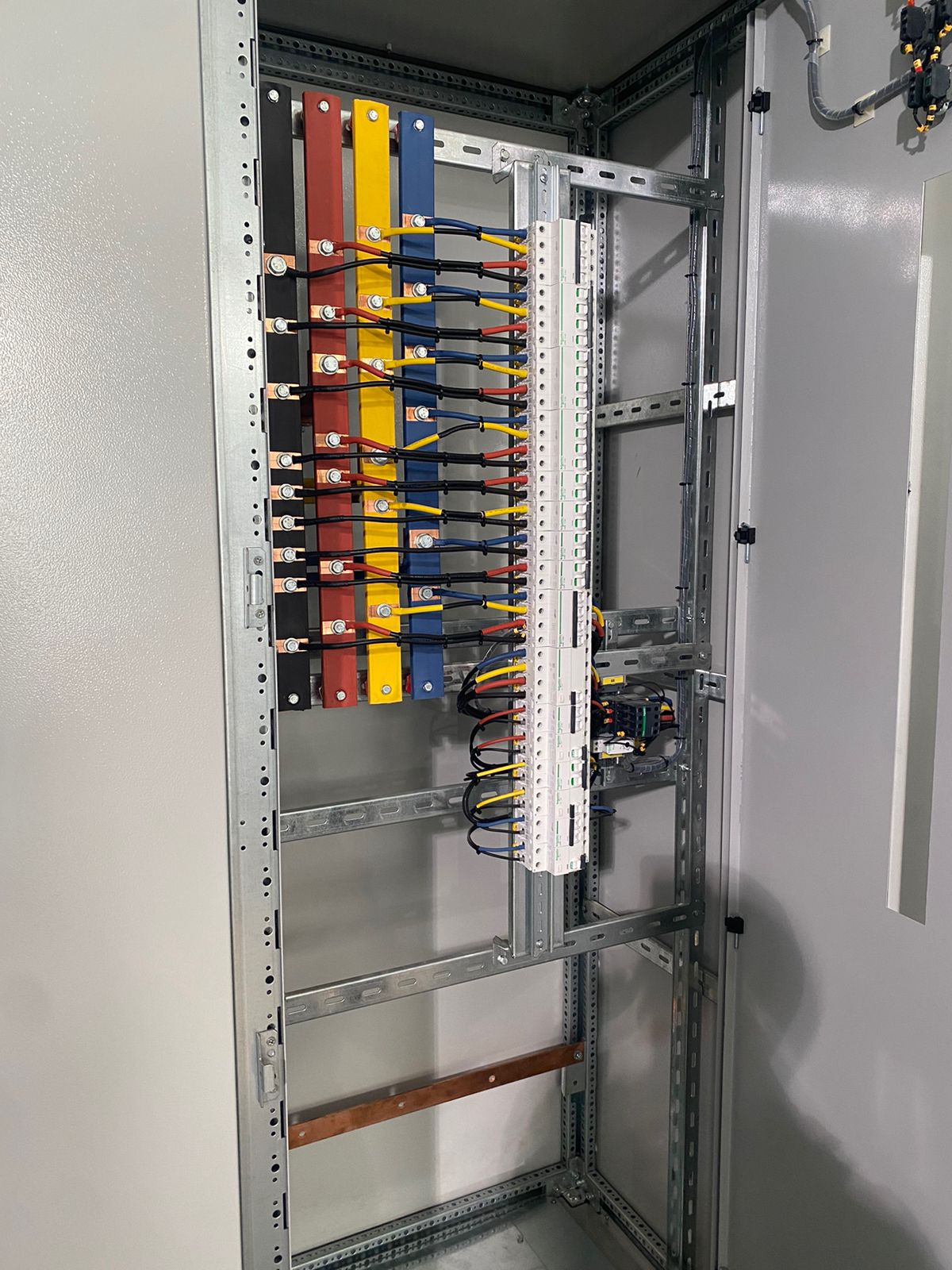

16EA Main Distribution Board for BED-3 field, 0.4KV, 1000A, 15KA for 1Sec., Weather Proof IP55, Self-standing on Floor cons ists of:

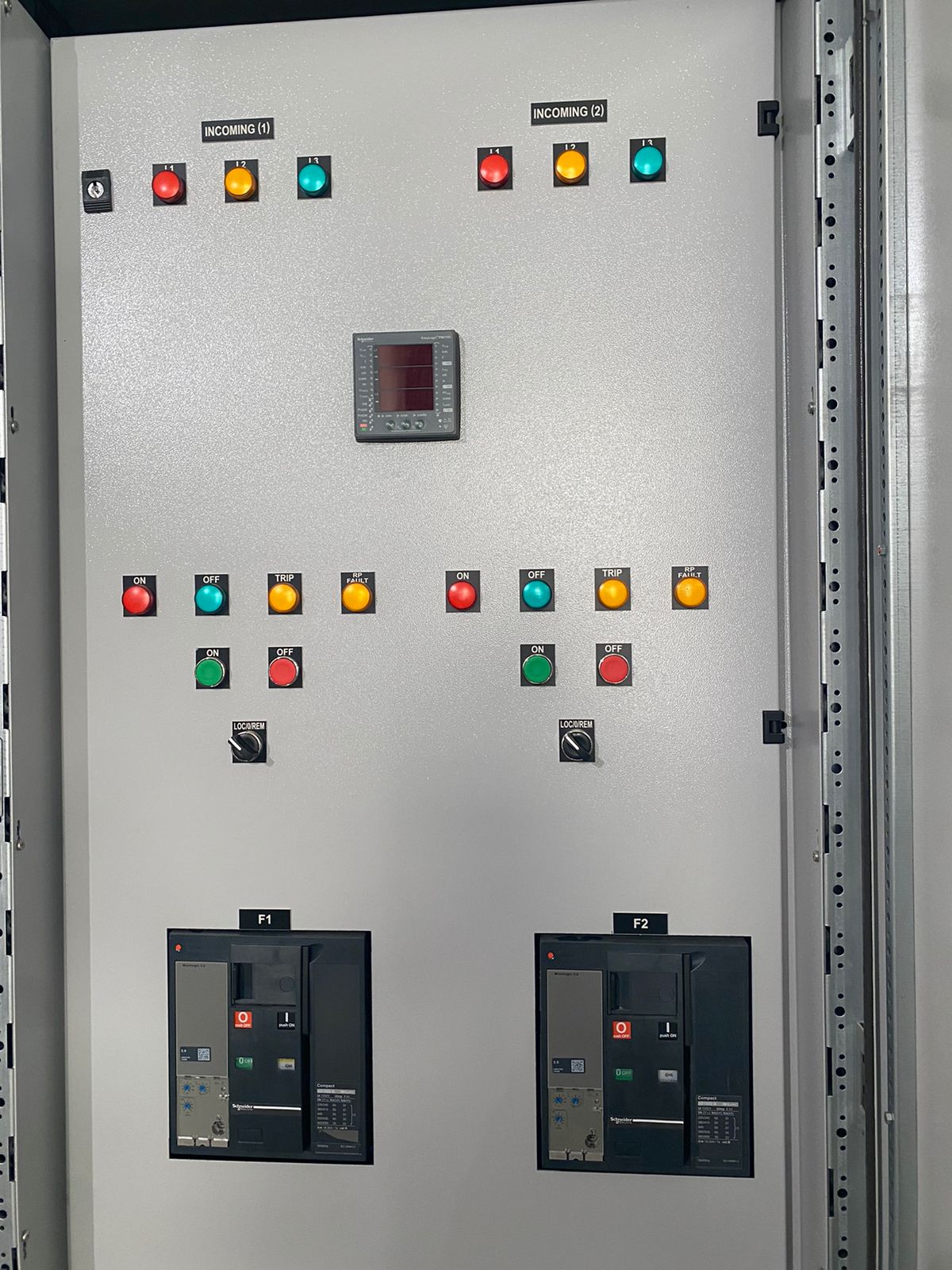

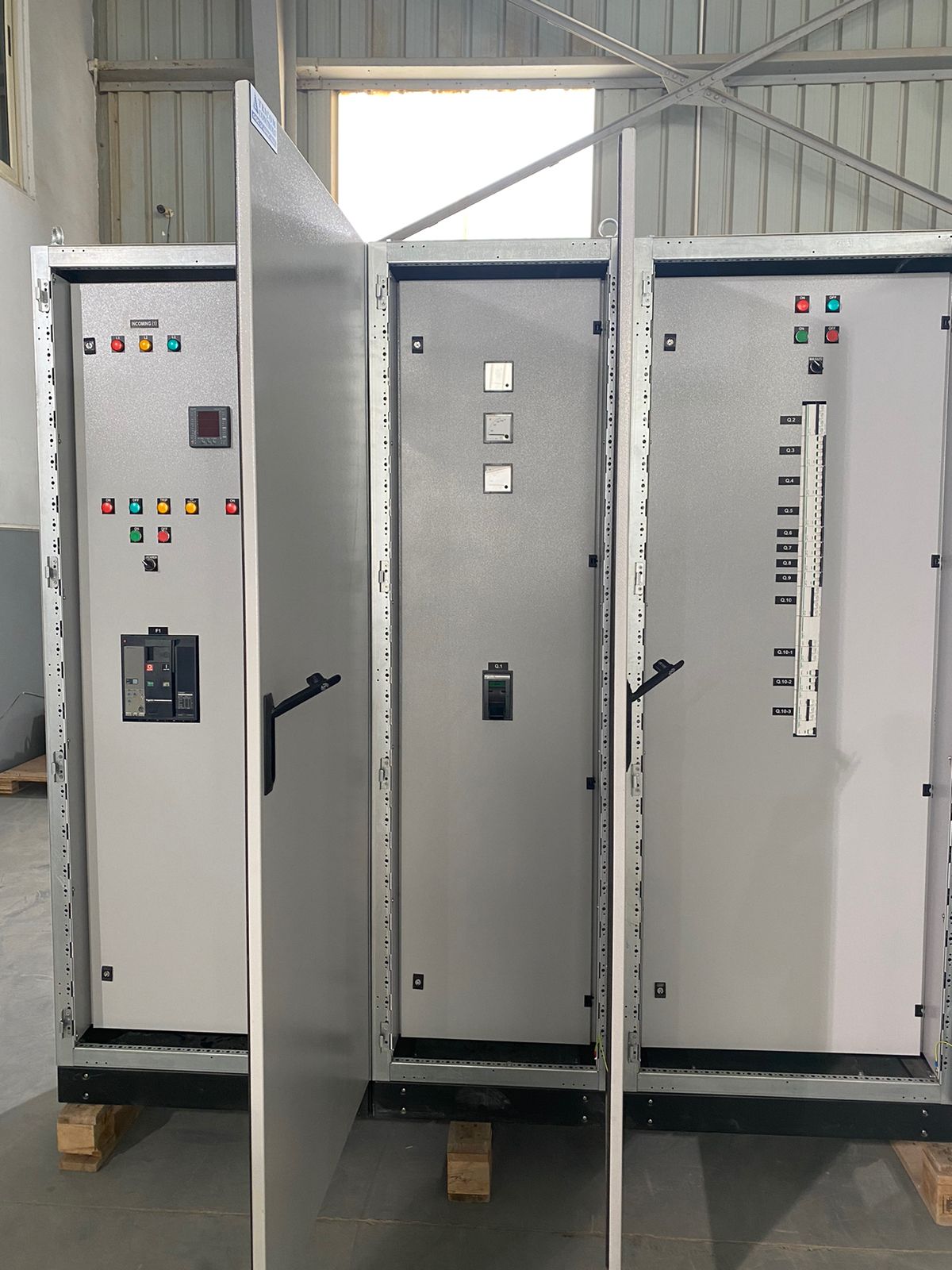

• Two Main Incoming 1000A, 4P,Schneider Electric NS1000N-4P-MICR -2.0 with reverse power protection and flush mounted digital power meter PM2110.

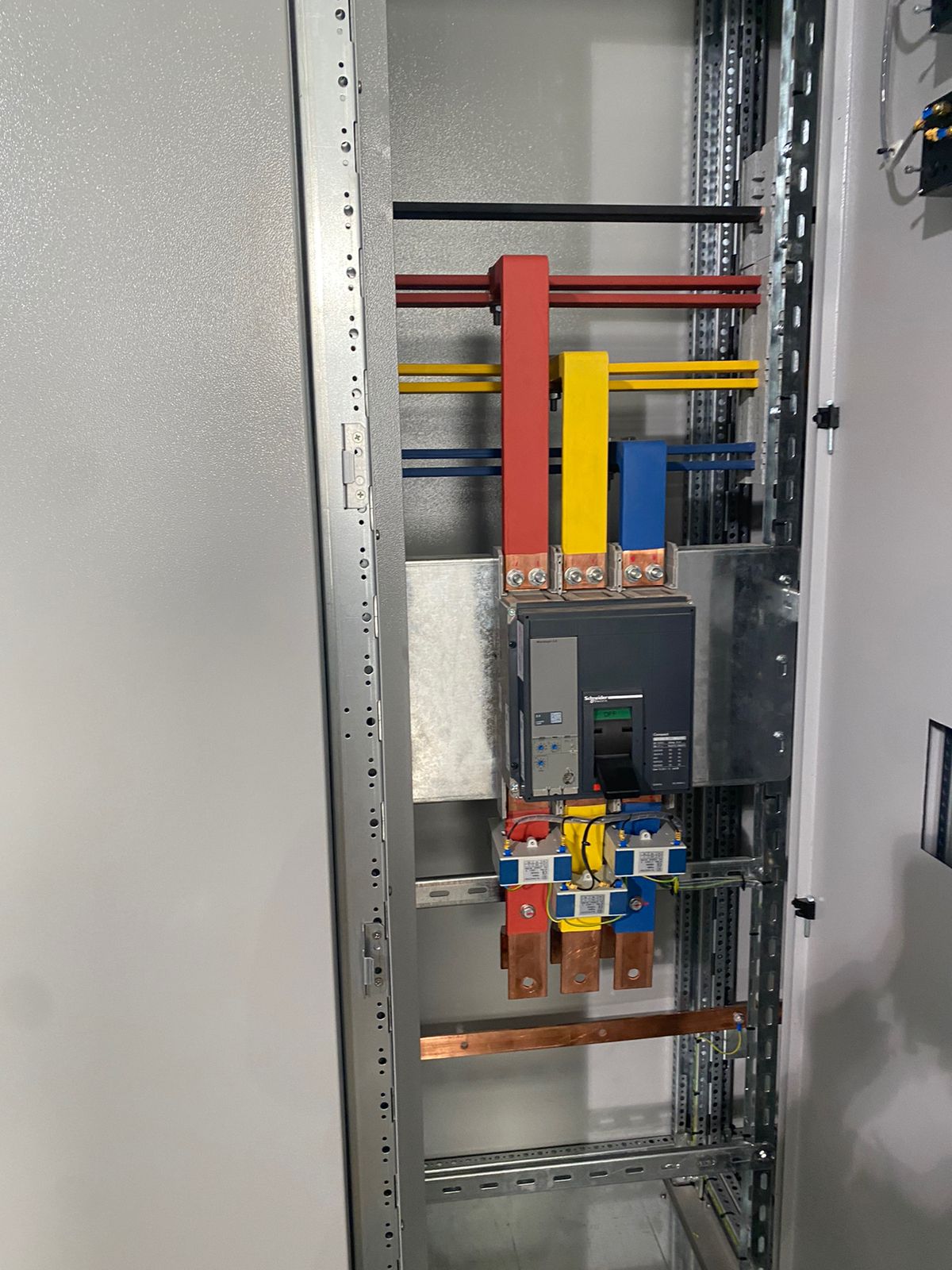

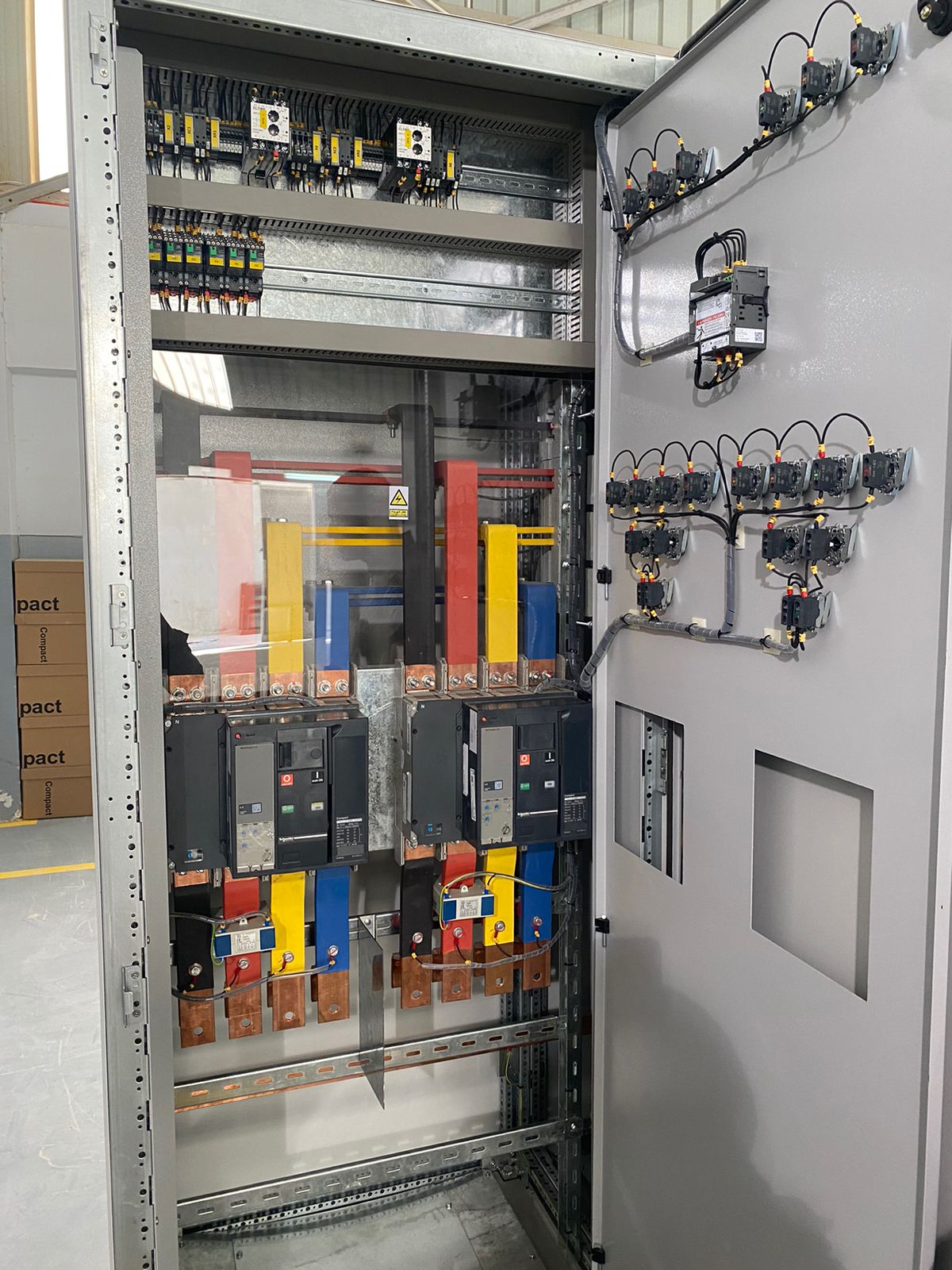

• Section.1 One outgoing 1000A, Schneider Electric ComPact NS1000N, 50kA/415VAC, Micrologic 2.0 trip unit, 1000A, fixed, 3 poles 3d.
• Section.2 Manual/Automatic outdoor lighting for the street lighting system.

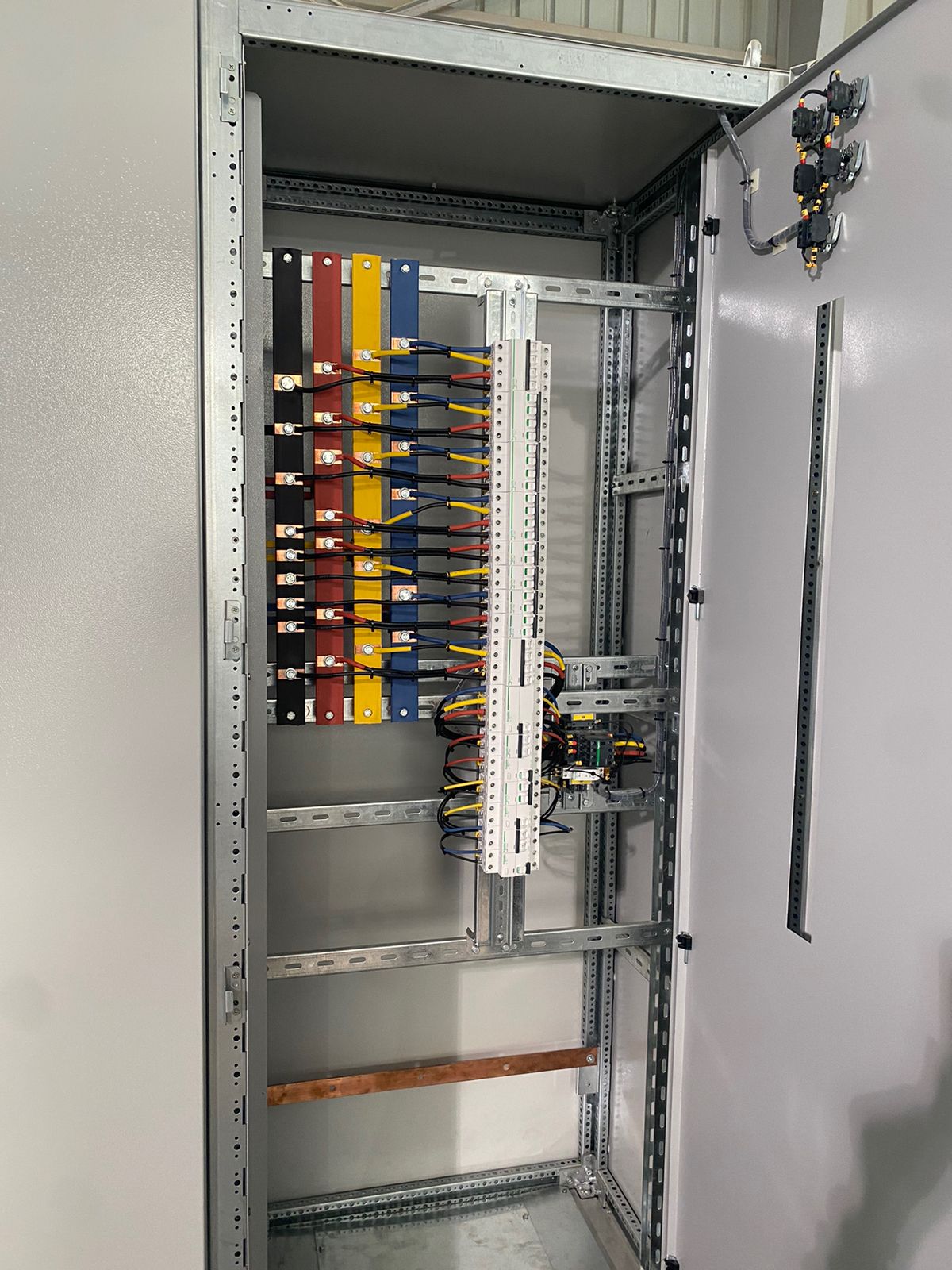

• Section.3 LOT of distribution MCB’s for different loads.


Hassan Allam - PGESCO

Project: MIDOR - MIDELEC POWER GENERATION EXPANSION
Main Contractor: Hassan Allam
Consultant: PGESCO

Design, manufacture, installation, FAT, SAT, commissioning and startup of EATON xEnergy Main withdrawable 400VAC LV Motor Control Center & 690VAC Low Voltage Switchgear

400VAC MCC c/w 400/230 V AC Distribution Unit (22BFA)
EATON xEnergy Main, 1600A, 3P, 50HZ, TN-S, 50KA/1sec, 1000 V insulation voltage, Form 4b as per IEC 61439, certified for use in seismic zone.

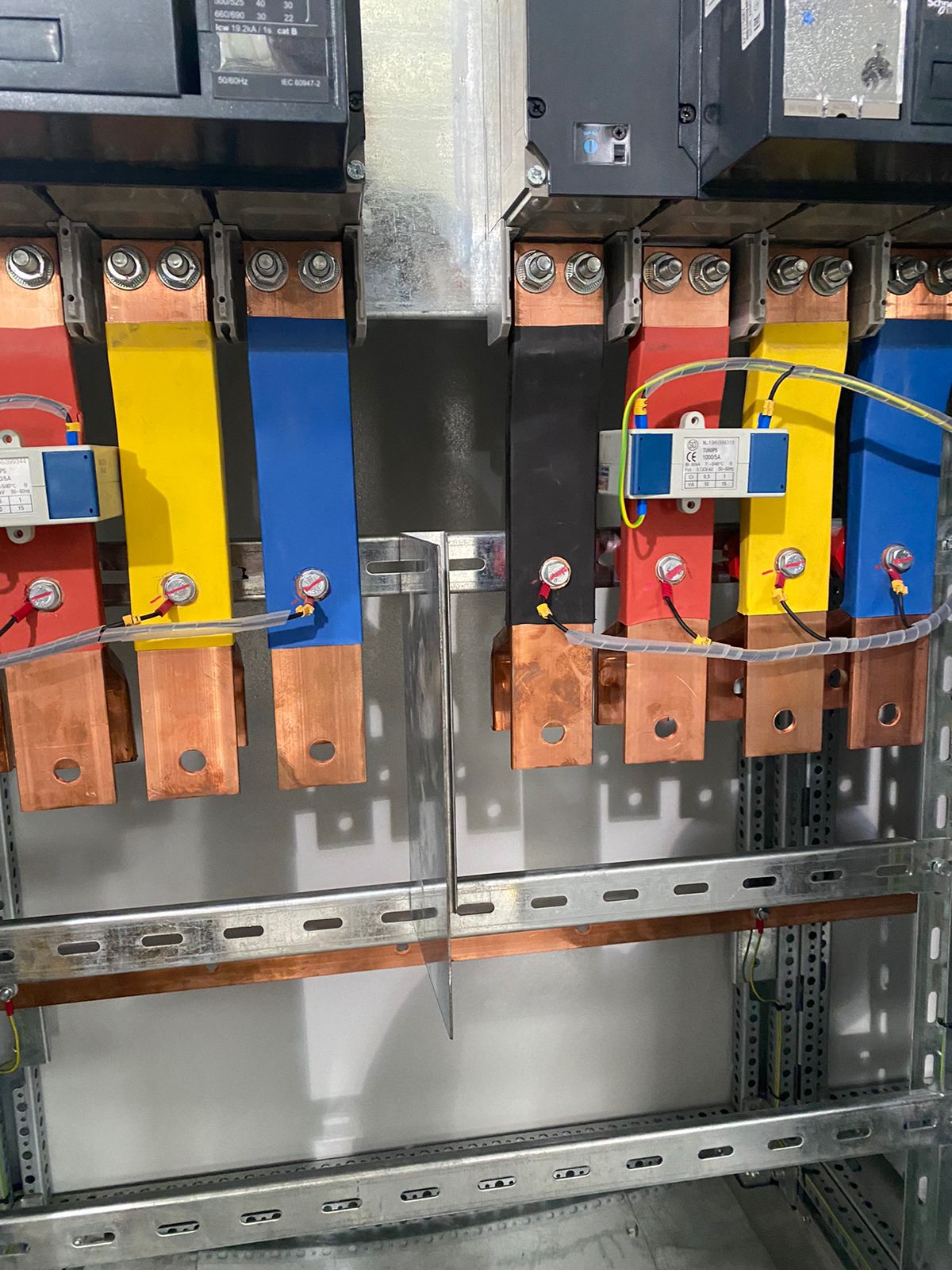

Copper busbar epoxy painted and silver plated at joints.
No.2 Incoming EATON XP-power section with IZMX16, 1600A, withdrawable type with mechanical & electrical interlock and with Automatic Transfer Switch DSE334 Controller for automatic switching between two incomers.
No.1 Outgoing EATON XP-power section with IZMX16, 800A, withdrawable type.
No.4 EATON XW-Withdrawable section c/w No.31 fully withdrawable feeder outgoings EATON NZM series up to 160A with earth leakage protection.
80A, 400/230 V AC Distribution Unit (integrated in MCC ) with current limiting type MCCB NZM1 and outgoing MCB’s EATON mMCT to maintain overall short circuit at 50KA.

690VAC LV switchgear (22BFT)
EATON xEnergy Main, 2000A, 4P, 50HZ, TN-S, 40KA/1sec, 1000 V insulation voltage, Form 4b as per IEC 61439, certified for use in seismic zone.
Copper busbar epoxy painted and silver plated at joints.
No.2 Incoming EATON XP-power section with IZMX40, 2000A, withdrawable type with mechanical & electrical interlock (1 out of 2).
No.2 Outgoing EATON XP-power section with IZMX40, 2000A, withdrawable type.


Arab Organization of Ind. - AOI / Farannah

- Marsa Aalam Desalination Plant 3,000m3/d
• PLC S7300, WINCC SCADA/HMI
• MCC and Drive Panels
• Sales, Engineering and Commissioning & Start up

- Filter Auto/Manual washing system for Qty. 42 Panel
• PLC S7200, WINCC SCADA/HMI
• Low Voltage MCC & Operation Panels
• Sales, Engineering and Commissioning & Start up


Enppi-Qarun Petroleum Company

- EATON X-Energy LV distribution board IP 55
- Type tested form 4b factory assembled
• Draw out type
• 2 incomings from 2000A and Bus coupler 630 A
• 14 outgoings from 25A to 630 A


Agiba Petroleum Company

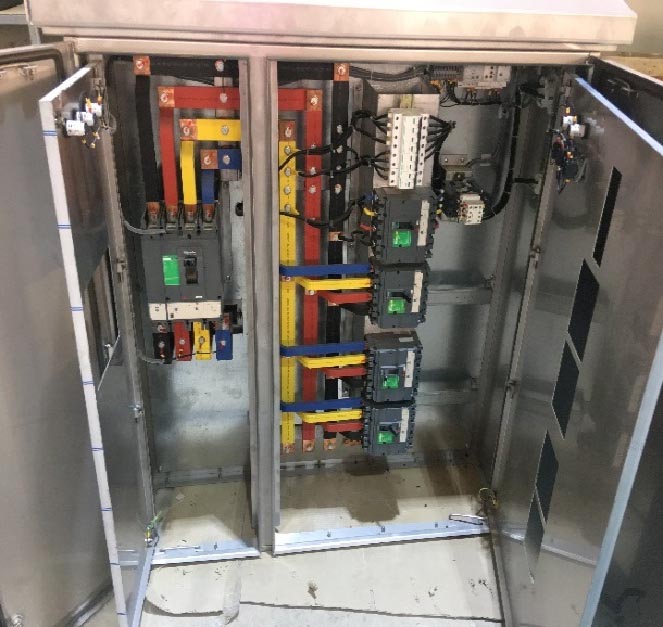

- Design, Integration, Supply of No.30 LV Panels

• Material: Stainless steel 304
• Degree of Protection: IP 65
• Double doors
• Dimensions (H*W*D): 120*120*30 cm
• Breaker Manufacture: Schneider Electric
• Rated Current: 630A

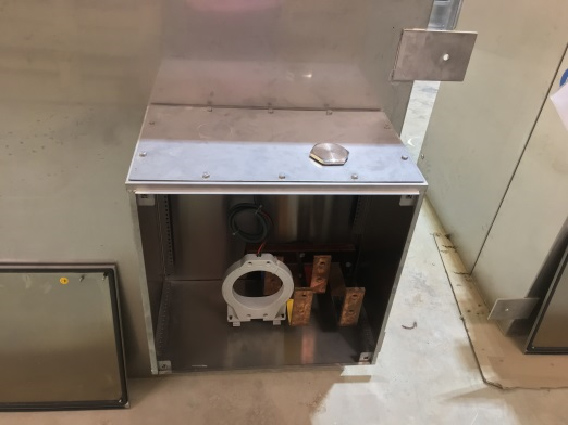

• Equipped with IP65 back box for incoming bus bars


Badr Petroleum Company

- Design, Integration, Supply of No.25 LV Panels

• 0.4KV, 15KA
• Material: Steel Sheet, Outdoor
• Degree of Protection: IP 55
• Dimension (H*W*D): 200*180*60 cm
• Breaker Manufacture: Schneider Electric
• Rated Current: 1250A
