General Petroleum Company

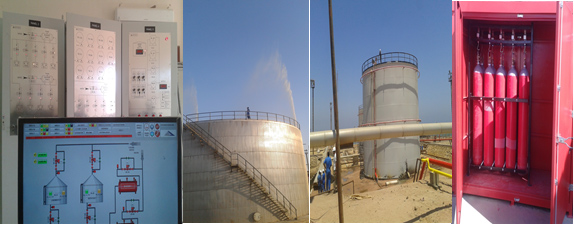

- Turn Key Project Design, Supply, Install, Commissioning and Startup of Fire & Gas Detection and Fighting systems for Qty. 36 Tanks General Petroleum Company (GPC) RAS GARAB Site

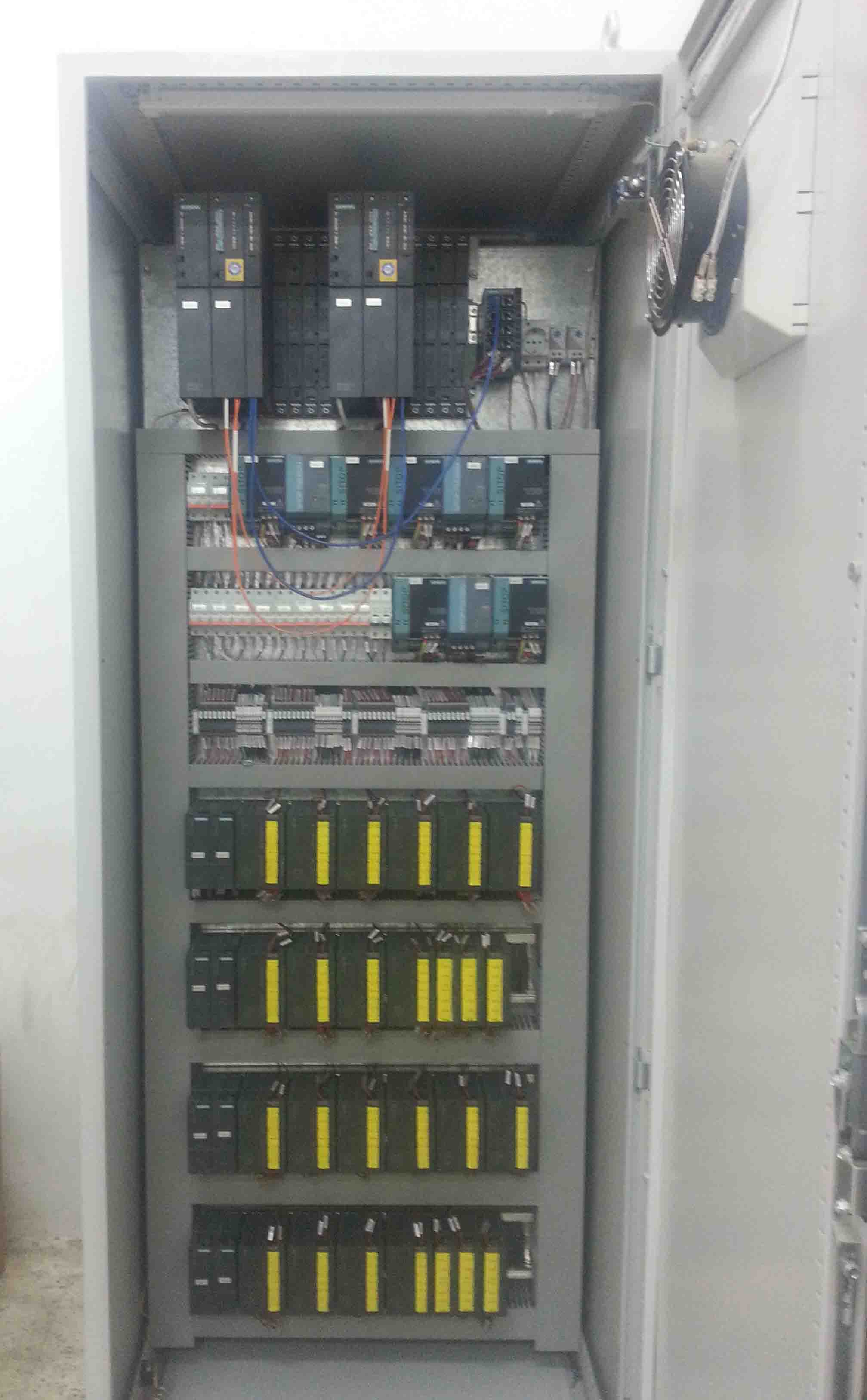

• Fail safe system S7-400 FH
• Full I/O monitoring & EOL

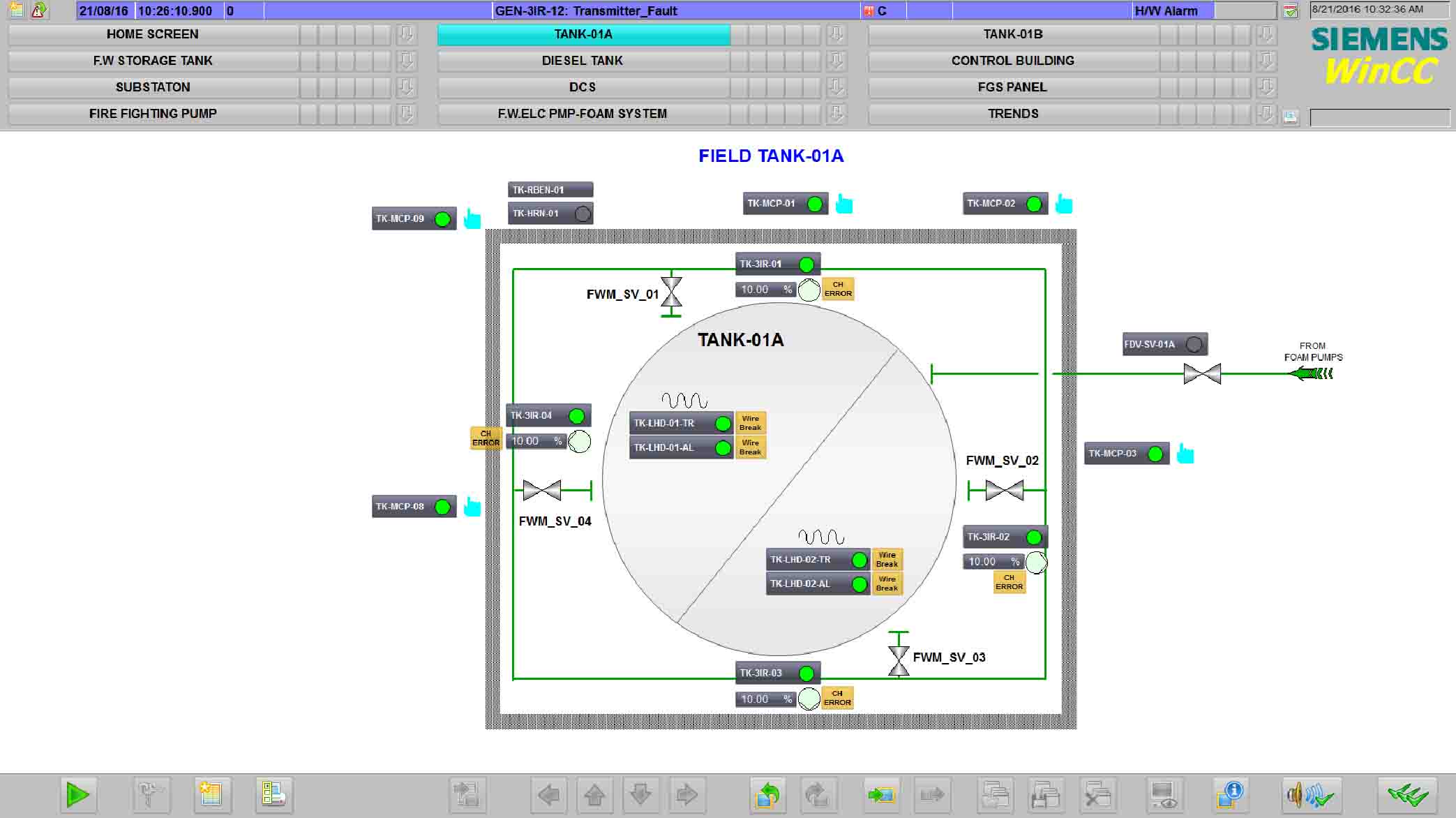

• Wincc SCADA Operator & Engineering Stations
• Foam fighting & cooling water
• CO2 fighting in switchgears “based on conventional control via PLC”
• F&G detection and alarm devices:

Qty. 20 Double actions manual pull station Qty. 10 Indoor optical smoke detector

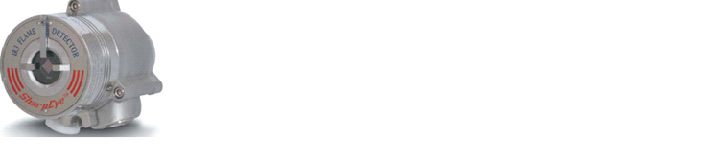

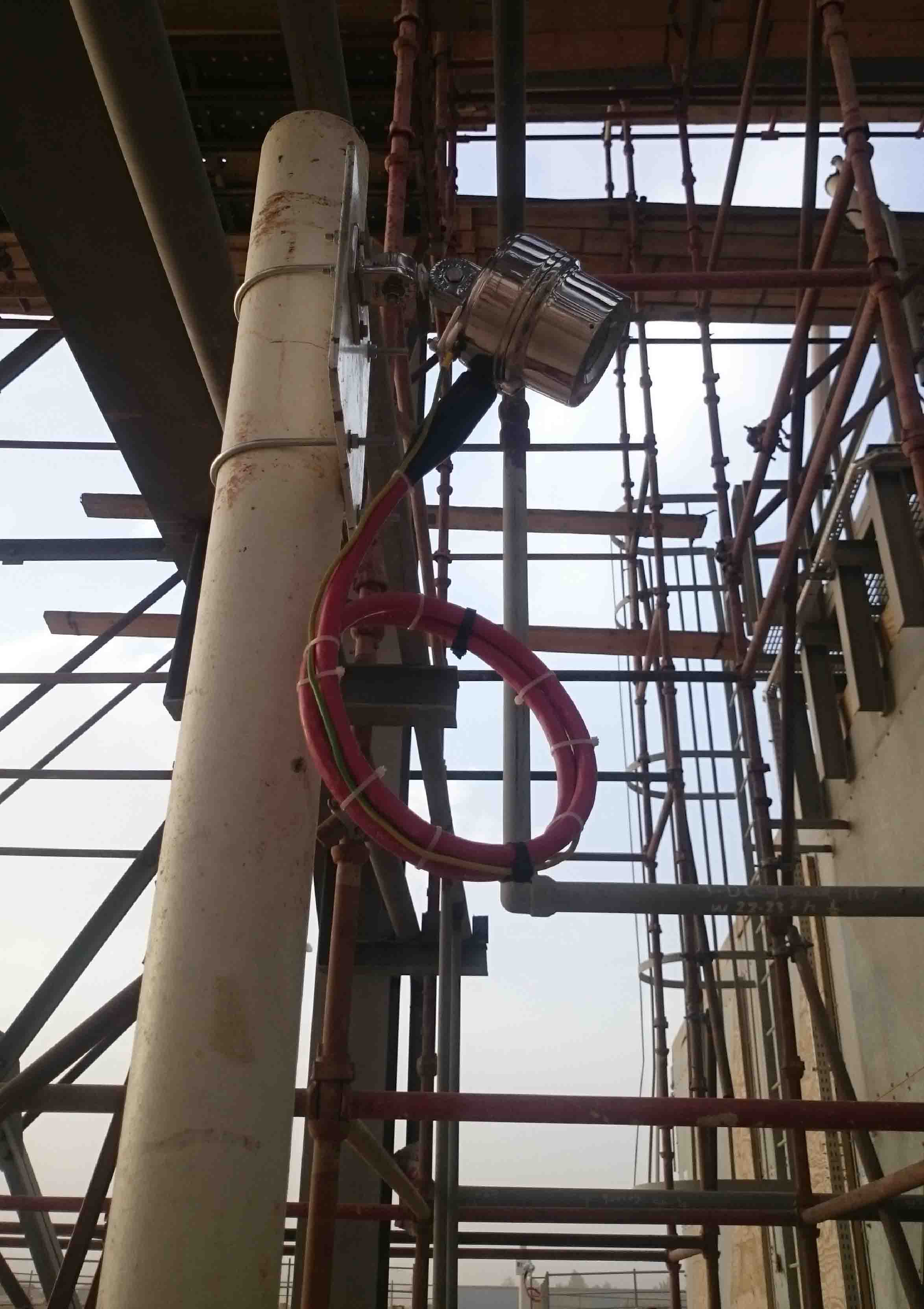

Qty. 21 Ex UV/IR Flame detector Qty. 2 Indoor manual pull station

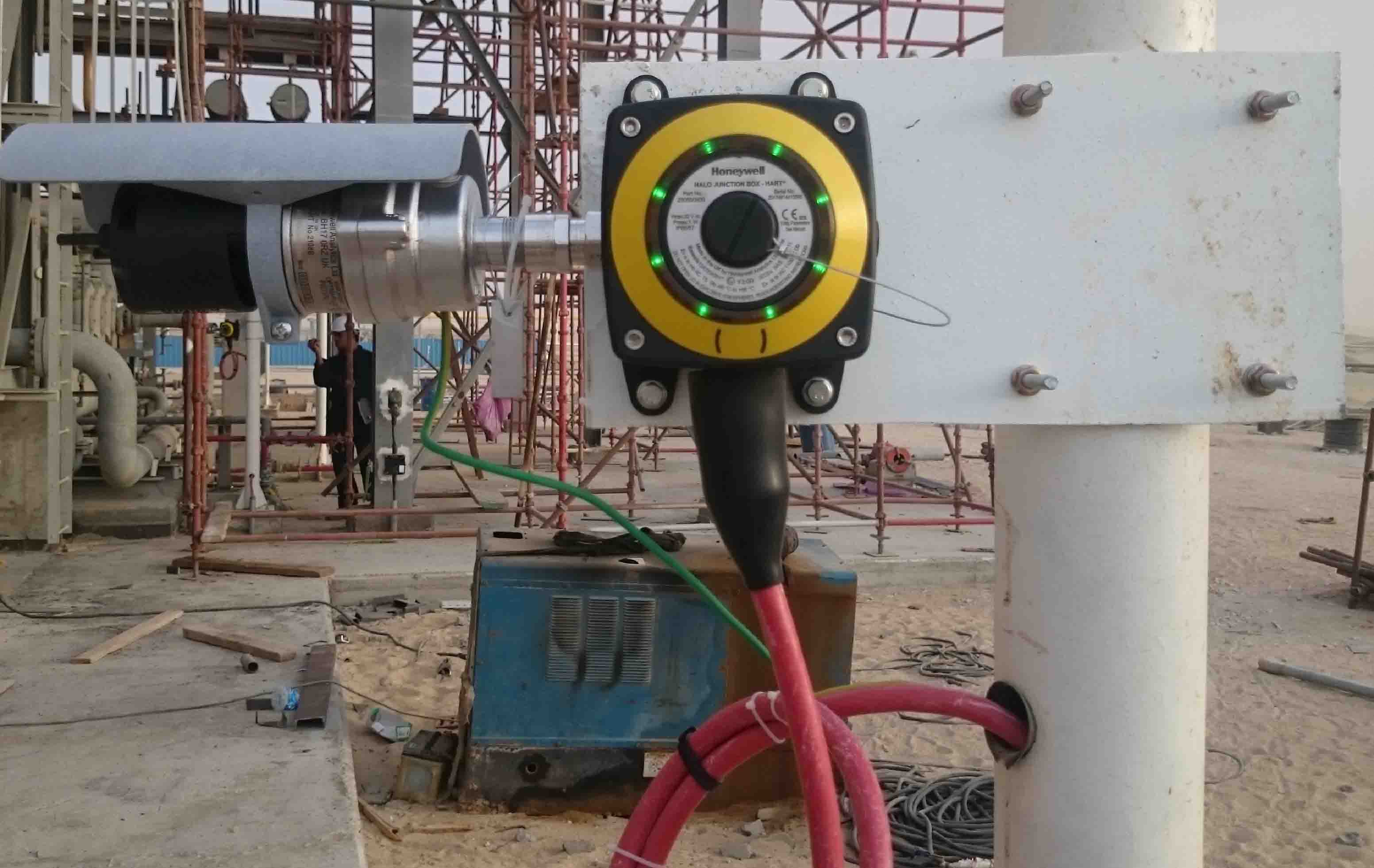

Qty. 17 Ex Hydrocarbon open path gas detector Qty. 1 Bypass low level switch for fire-fighting water
Qty. 6 Ex H2S gas detector Qty. 158 Tamper switch for valves
Qty. 5 Ex hydrocarbon point gas detector Qty. 48 CO2 cylinders
Qty. 5 Indoor 58˚C heat detector Qty. 8 Indoor optical smoke detector
Qty. 4000m Linear 105˚C heat detector Qty. 3 Double actions manual pull station

PreviousNext

Enppi - Quran Petroleum Company

- Supply, Commissioning and Startup Of Fire & Gas Detection system at Dahshour Storage Area, Including 2 Storage Tanks, Control Building, DCS Building and Switch gear Building based on

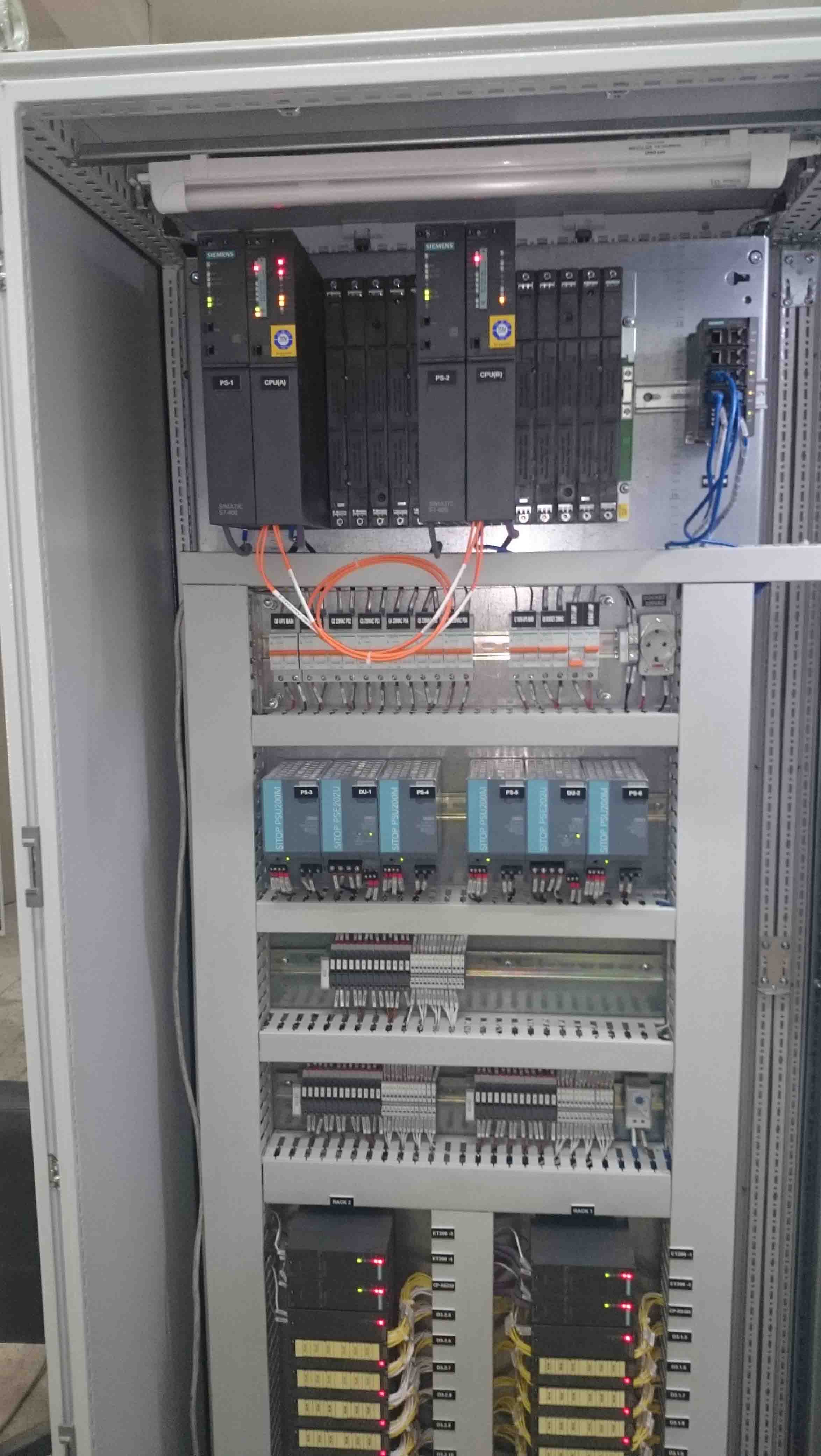

• Fail safe system S7-400 FH
• Redundant I/O
• SCADA Wincc V7.3, Operator & Engineering Stations
• F&G detectors and alarming devices:
Qty.12 Ex UV/IR Flame detector Qty. 1000 Linear 105˚C heat detector
Qty. 3 Ex hydrocarbon open path gas detector Qty. 20 Indoor optical smoke detector
Qty. 5 Indoor 58˚C heat detector Qty. 11 Double actions Exd manual call point

PreviousNext

Khalda Petroleum Company - Apache

• - Supply, Commissioning and Startup of Fire & Gas Detection system for Abul Gharadik compressors station

  • Control System PLC Siemens S7-400 FH
  • Redundant Communication, HMI
  • SCADA Wincc V7.3
  • Fire & Gas detectors and alarming devices

- Laying Cable Filed 8000 M, Filed Termination, Devices Calibration Commissioning & Start Up
