MEDIUM DENSITY FIBREBOARD - MDF
Petrojet /WOTECH

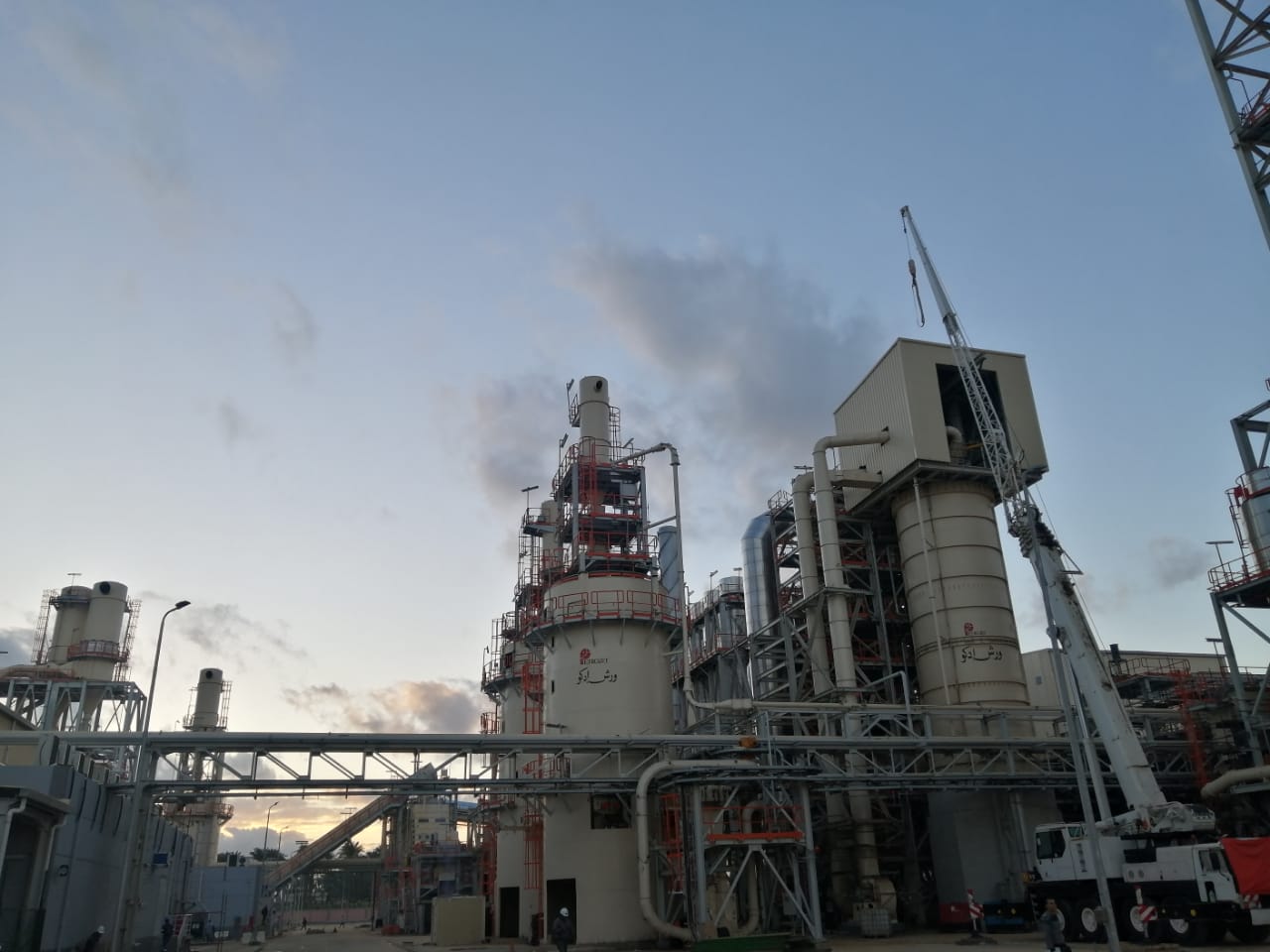

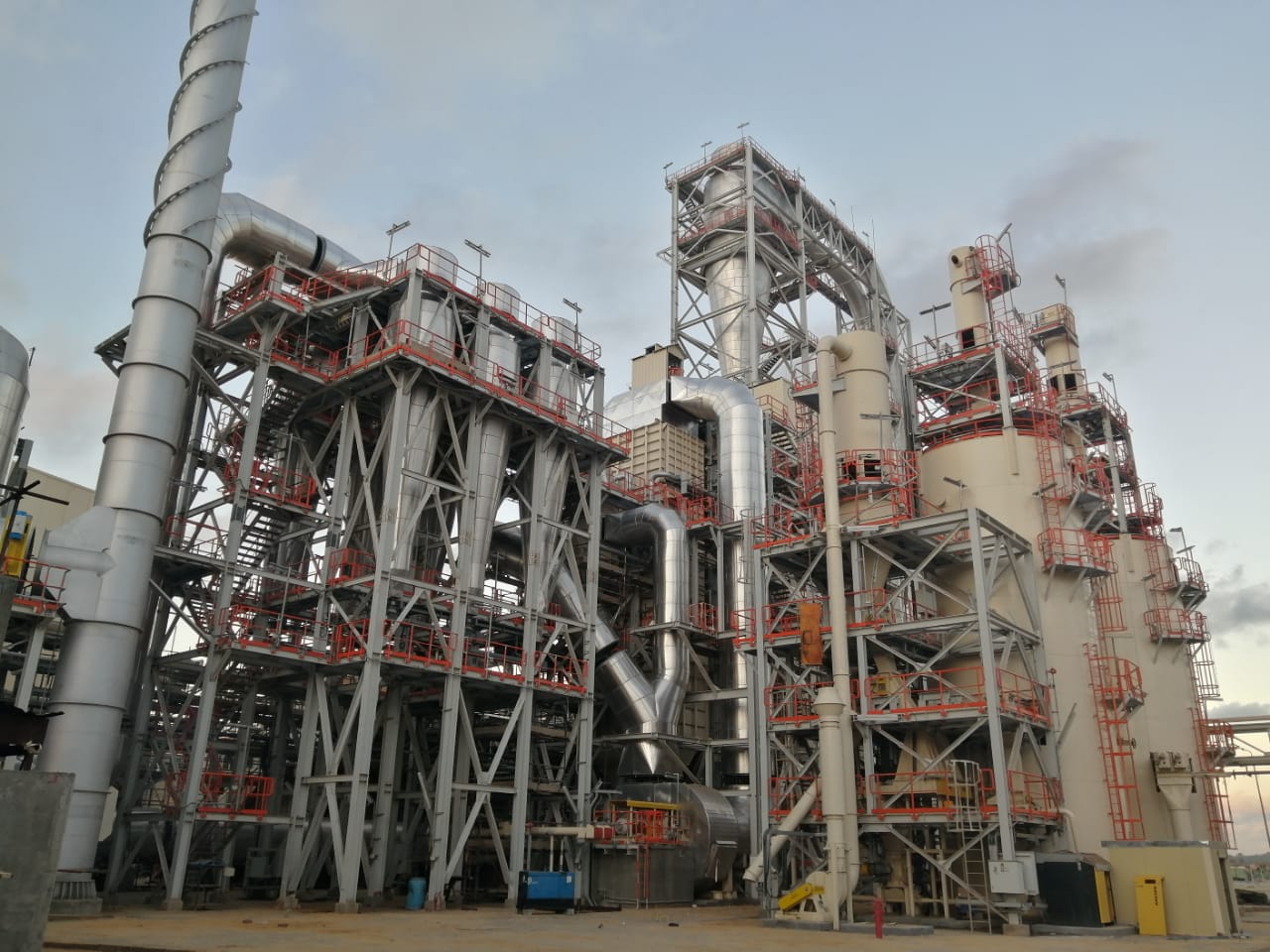

MDF is an annual production capacity of 205,000 m 3 which will process the annual plant rice straw as raw material
In this respect is breaking new ground in sustainable wood-based products production which is considered the second facility of its type after CalAg, LLC, California, to utilize Siempelkamp technology for an MDF plant based on rice straw.
The Project SOW as the Following:

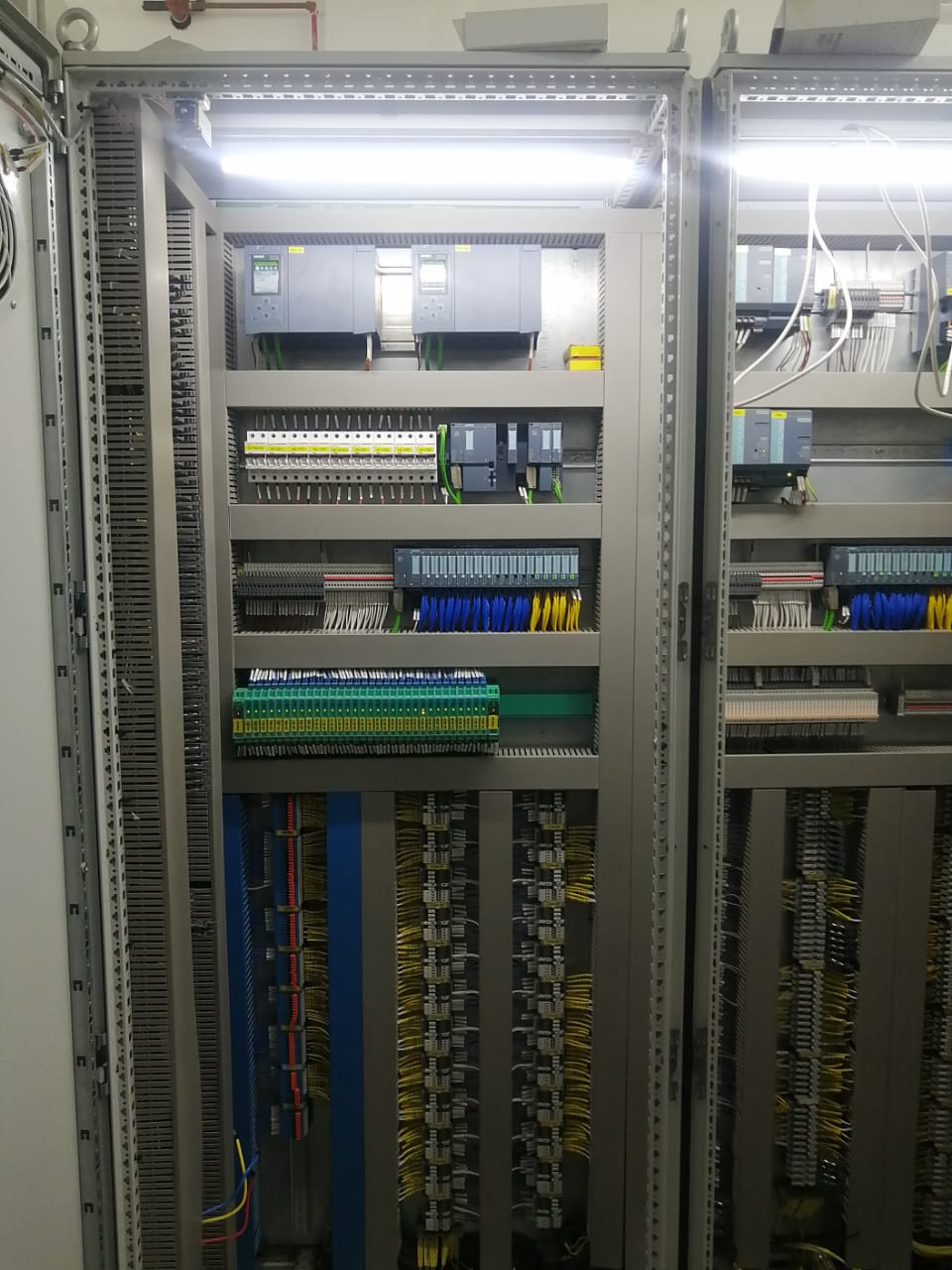

Design, Engineering, Supply, Integrate, Test, Commissioning and Start-up of Process Control System (PCS) & Emergency Shutdown System (ESD) based on SIMATIC S7-1500H Hot Standby and SIMATIC ET 200SP.
Design, Engineering, Supply, Integrate, Test, Commissioning and Start-up for F&G system SIL3 PLC System (SIMATIC S7-400FH and ET200M).
Plant Fire & Gas detectors and alarming devices as the following; Qty. 45,000 Meter of F&G Resistance Cables with multi sizes
Qty.5 Point IR Gas Detector
Qty.3 MDI Gas Detector
QTY.26 Optical Beam Smoke Detector
Qty.2 Open Path Gas Detector
Qty.4 3-IR Flame Detector
Qty.6 Visual Flame Detector VFD
Qty.45 Manual pull station
Qty.41 Beacon – Red/Blue Color
Qty.41 Site Horn
Complete set of testing tools for all F&G devices
Qty.44 Exe S.S junction boxes
