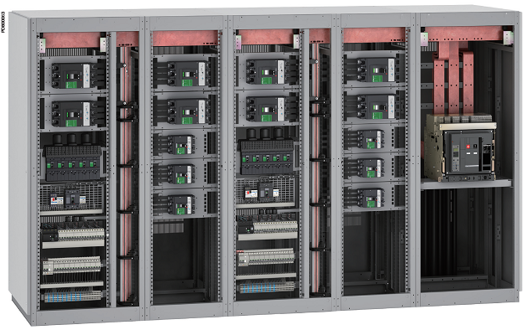

PrismaSet International

Certified Panel Builder for PrismaSet International,

Modular and prefabricated solution based on a complete system in kit form that thoroughly integrates Schneider Electric switchgear offerings.
o Type tested according to IEC61439-1 and 2
o Rated Current: up to 4000A
o Partitioning Form 2, 3b and 4b
o Temperature up to 50 °C
o Rated insulation voltage Ui : 1000 (V AC)
o Rated impulse withstand voltage : 12(kV)
o Rated short time withstand current up to 85 KA/1 sec.
o Rated peak withstand current Ipk 220 KA.
o IP 30/31/42/54
o IK 07/08/10
o Sheet metal epoxy resin powder electrostatic sprayed
o RAL9003 (enclosure) and RAL9022 (functional unit)
o Environmental conditions Environment B
o Degree of pollution 3
o Altitude 2000 Mt.
o high-temperature withstand, combustion self-prevent

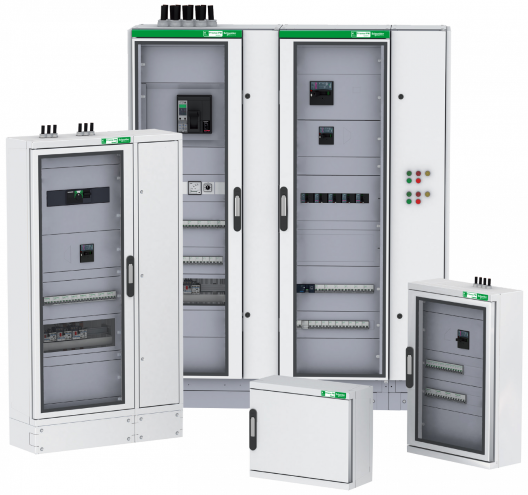

Schneider Spacial Universal Enclosures (for Non-Type tested Solution)

Spacial CRN
Material Steel
Finish Structured finish, epoxy-polyester powder
Color RAL 7035 gray
Ingress protection rating • IP66 for one-door enclosures
• IP55 for two-door enclosures according to IEC 62208
Mechanical protection rating  IK10 for plain door and IK08 for glazed door according to IEC 62208
Standards IEC 62208
Certifications • UL (cULus), CUL
• Types 12 and 13 according UL50E
• RoHS compliance

Compact enclosures Spacial SM

• Compact body with a front rigid frame with welded corners and rear panel supports installed in depth to adjust and fix the equipment with a pitch of 25 mm

Material Steel
Finish Structured finish, epoxy-polyester powder
Color RAL 7035 gray
Ingress protection rating IP55 according to IEC 60529
Mechanical protection
rating
IK10 for plain door and IK08 for transparent door according to IEC 62262
Standards Compliance with enclosure standard IEC 62208 and RoHS and REACH directive
Certifications BV Marine, UL (cULus), Rating according UL50E : single-door enclosures : Types 1, 2, 3R, 5 and 13.
Double-door enclosures Types 1, 12

Modular Floor-Standing Decarbonized Steel Enclosures

• Separate door, panels, frames and vertical uprights

Material Decarbonized stee
Finish Structured finish, epoxy-polyester powder
Color RAL 7035 gray
Ingress protection rating IP55 according to IEC 60529  (with side panels and plain cable gland plate with gasket)
IK10 for plain door and IK08 for transparent door according to IEC 62262
Mechanical protection
rating
IK10 for plain door and IK08 for transparent door according to IEC 62262
Standards Compliance with enclosure standard IEC 62208 and RoHS and REACH directive
Certifications BV, DNV, UL (cULus) Rating according to UL50E: Types 1, 3R, 12

Smart Panels

Smart Panels are key components of energy management in buildings.
You can only manage what you measure and see. Schneider Electric Smart Panels form the basis of a simple solution for understanding how a building functions in terms of energy consumption and technical performance.
Smart Panels are the first step in creating an energy management strategy.
Combined with Schneider Electric Energy Management Services, they form acomplete solution for real energy savings.
Smart Panels are based on the Ethernet network. Ethernet is widely used in domestic and industrial applications, allowing easy, transparent access to electrical devices from any location.
